What is Marine Rope Made Of?

Do you know what keeps ships tied safely? Have you ever wondered about the strength of ropes on a boat? Poor rope choice can lead to big problems.

Marine ropes are made from strong materials like nylon, polyester, and polypropylene. These choices provide durability and resistance to harsh sea conditions.

Let me tell you about a time a client almost made a huge mistake with their rope order. They thought all ropes were the same. This story changed their mind.

What Materials Make Marine Ropes Strong?

Have you ever wondered what gives marine ropes their famous strength? The right material is key to a rope’s performance at sea. It helps ropes handle heavy loads and tough weather.

Marine ropes get their strength from specific materials. These include natural fibers like manila and synthetic fibers like nylon, polyester, and polypropylene.

Let’s dive deeper into some common materials used for marine ropes. Each material has its own special features. Knowing these features helps you choose the best rope.

Synthetic Fibers: The Modern Choice

Synthetic fibers are popular for marine ropes. These materials are man-made. They offer many benefits that natural fibers sometimes lack.

Nylon

Nylon is a very common choice for marine ropes. It is known for its strength and stretch.

  • Key Features of Nylon:
    • High Strength: It can handle heavy loads without breaking easily.
    • Good Elasticity: Nylon ropes can stretch. This helps absorb shocks, like waves hitting a boat.
    • Abrasion Resistance: It stands up well to rubbing and wear.
    • UV Resistance: It holds up well against sunlight.
    • Chemical Resistance: It resists many chemicals found at sea.
  • Uses of Nylon Ropes:
    • Mooring lines
    • Anchor lines
    • Dock lines
    • Tow lines

Polyester

Polyester is another top synthetic fiber for marine use. It is different from nylon in some important ways.

  • Key Features of Polyester:
    • Low Stretch: It does not stretch much. This makes it good for uses where you need little give.
    • High Strength: It is also very strong, like nylon.
    • Excellent UV Resistance: It resists sun damage very well.
    • Good Abrasion Resistance: It is tough against wear.
    • Water Resistance: It does not absorb much water.
  • Uses of Polyester Ropes:
    • Running rigging (sheets and halyards)
    • Control lines
    • Anchor rodes (often combined with chain)

Polypropylene

Polypropylene is a lighter synthetic fiber. It has a unique feature that makes it useful for specific marine tasks.

  • Key Features of Polypropylene:
    • Lightweight: It is very light, even lighter than water. This means it floats.
    • Affordable: It is often less expensive than nylon or polyester.
    • Good Chemical Resistance: It resists many acids and alkalis.
    • UV Degradation: It can degrade faster from UV light than nylon or polyester. Special coatings can help.
  • Uses of Polypropylene Ropes:
    • Ski ropes
    • Rescue lines
    • Dinghy painter lines (for small boats)
    • Barrier ropes

Natural Fibers: The Traditional Choices

Before synthetics, natural fibers were the go-to for ropes. Some are still used today, mainly for traditional boats or decorative purposes.

Manila

Manila rope comes from the abaca plant. It was once very popular for marine use.

  • Key Features of Manila:
    • Good Grip: It is easy to hold, even when wet.
    • Strong and Durable: It is quite strong for a natural fiber.
    • Resistant to Salt Water: It holds up well in salty conditions.
    • Shrinks When Wet: It can shrink and stiffen when it gets wet.
    • Subject to Rot and Mildew: It needs proper drying to prevent damage.
  • Uses of Manila Ropes:
    • Decorative ropes
    • Traditional boat rigging
    • Garden and landscape use

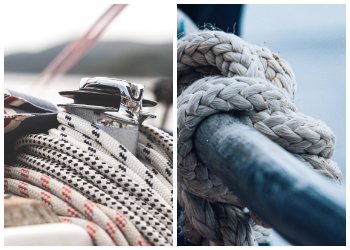

How Does Rope Construction Affect Its Strength and Use?

Do you know that how a rope is made changes how it works? The way fibers are put together affects its strength. It also changes how you can use the rope.

Rope construction methods like twisted, braided, and plaited designs affect performance. These methods determine a rope’s flexibility, strength, and ease of handling.

Let’s look at how rope construction impacts its use. Different designs are better for different jobs on a boat.

Twisted Rope (Laid Rope)

Twisted ropes are one of the oldest types of rope. They are made by twisting strands together.

  • How it’s made: Individual fibers are twisted into yarns. These yarns are twisted into strands. Finally, three or more strands are twisted together to form the rope.
  • Key Features:
    • Simple to make: This is a traditional method.
    • Good stretch: Especially noticeable in 3-strand twisted ropes.
    • Easy to splice: You can join two ropes easily.
    • Can kink or hockle: It can twist on itself if not handled right.
  • Uses:
    • Anchor lines
    • Dock lines
    • General utility ropes

Braided Rope

Braided ropes are very common today. They offer a smooth surface and good strength.

Double Braid

Double braid is a very popular type of braided rope. It has a core covered by a braided cover.

  • How it’s made: An inner braided core is covered by an outer braided cover. This creates a strong and stable rope.
  • Key Features:
    • High strength: It is very strong for its size.
    • Low stretch: It does not stretch much, especially polyester double braid.
    • Smooth handling: It feels good in your hands.
    • Easy to splice: It is relatively easy to splice.
    • Good knot retention: Knots hold well.
  • Uses:
    • Running rigging (sheets, halyards, control lines)
    • Mooring lines
    • Dinghy control lines

Single Braid

Single braid ropes have just one braided layer. They are often used for specialized applications.

  • How it’s made: A single braided structure without a separate core. This often involves 12 or 16 strands.
  • Key Features:
    • Lightweight: Lighter than double braid of similar strength.
    • Very strong: Can be extremely strong, especially with high-performance fibers.
    • Easy to splice: Some single braids are very easy to splice, creating strong eye splices.
    • Less durable: The single layer can be more prone to abrasion if not covered.
  • Uses:
    • High-performance halyards
    • Control lines
    • Specialized rigging

Other Constructions

Some ropes use special constructions for specific benefits.

Parallel Core Rope

These ropes have fibers that run straight through the core. This helps reduce stretch.

  • How it’s made: The main load-bearing fibers run parallel in the core. A braided cover protects them.
  • Key Features:
    • Extremely low stretch: Ideal for applications where no stretch is wanted.
    • Very high strength: The parallel fibers can carry a huge load.
    • High cost: More expensive to produce.
  • Uses:
    • Extreme performance racing lines
    • Industrial lifting applications

Why Is Choosing the Right Marine Rope Important?

Do you ever think about why choosing the right rope matters so much? Using the wrong rope can cause big safety risks. It can also lead to wasted money and ruined equipment.

Choosing the right marine rope is vital for safety, performance, and efficiency. It ensures the rope can handle marine conditions and meet specific job demands.

When I work with clients, I always stress the importance of matching the rope to its job. For example, a client once wanted to use a standard rope for a heavy-duty crane. I had to explain why that was a bad idea. We need to consider factors like breaking load, operating environment, and compliance.

Factors to Consider When Choosing Ropes

Several factors guide the selection of marine ropes. Each one affects how the rope performs.

Application (What is it for?)

The most important question is how you will use the rope. Different tasks need different rope types.

  • Mooring/Dock Lines: Need stretch to absorb shock, good abrasion resistance. Nylon is often ideal.
  • Anchor Lines: Need strength and elasticity. Nylon is common.
  • Running Rigging (Halyards, Sheets): Need low stretch and good handling. Polyester double braid is a good choice.
  • Tow Lines: Need high strength and elasticity. Nylon is usually preferred.
  • Specialized Assemblies: May need specific materials or custom designs for unique loads or environments.

Environment (Where will it be used?)

The conditions where the rope operates matter. The sea can be very harsh.

  • Saltwater: All marine ropes should resist salt.
  • UV Exposure: Ropes exposed to sun need good UV resistance (polyester, nylon).
  • Temperature: Extreme cold or heat can affect some rope materials.
  • Chemicals: Exposure to oils, fuels, or other chemicals needs chemical-resistant ropes.
  • Abrasion: Ropes that rub against decks, cleats, or rocks need high abrasion resistance.

Load (How much weight will it hold?)

The maximum weight a rope needs to hold is crucial. This helps determine the rope’s size and material. My ropes, like our crane wire rope, are designed for high tensile strength and high breaking load. This means they can handle immense weights safely.

  • Breaking Load (BL): The average force at which a new rope breaks.
  • Working Load Limit (WLL): The maximum weight a rope should safely carry. This is usually a fraction of the breaking load (e.g., 1/5 or 1/10).

Certifications and Standards

For critical applications, like crane wire ropes or elevator wire ropes, certifications are essential. I make sure my ropes meet international standards. This ensures quality and safety. We can provide BV & CE, RMRS, DNV, ABS certificates when clients need them. Our ropes comply with EN12385-4, a key standard for steel wire ropes.

  • Importance of Certifications:
    • Safety: Ensures the rope has been tested to meet safety standards.
    • Compliance: Meets legal or industry requirements for certain applications.
    • Quality Assurance: Shows the rope is produced to a high standard.
  • Examples:
    • EN 12385-4: Standard for steel wire ropes.
    • ABS, DNV, RMRS: Classification societies that certify marine products.

How Does Maintenance Extend Marine Rope Life?

Do you ever wonder how to make your ropes last longer? Good care can significantly extend a marine rope’s life. This saves you money and keeps you safe.

Proper maintenance, including cleaning, inspecting, and storing ropes, extends their usable life. This also ensures their continued reliability and safety in marine environments.

I once had a client who had to replace their ropes far too often. Their issue was simple: poor maintenance. After a short chat about proper cleaning and storage, their ropes lasted much longer. This saved them a lot of money over time.

Key Maintenance Practices

Following simple steps can greatly improve your rope’s lifespan.

Cleaning Ropes

Dirt, salt, and grime can damage rope fibers over time.

  • Rinse with fresh water: After each use, especially in saltwater, rinse ropes thoroughly.
  • Deep cleaning: For very dirty ropes, soak them in a bucket with mild soap. Then, rinse well. Avoid harsh chemicals.
  • Use a rope washer: Some people use special tools to clean ropes more efficiently.

Inspecting Ropes

Regular checks help you spot problems early.

  • Look for signs of wear: Check for cuts, frayed spots, soft spots, or stiff areas.
  • Check for discoloration: UV damage can make ropes look faded or brittle.
  • Feel the rope: Lumps or unevenness inside might mean internal damage.
  • Look at splices and knots: Make sure they are secure and not damaged.

Storing Ropes Properly

How you store your ropes when not in use is important.

  • Keep them dry: Store ropes in a dry, well-ventilated area to prevent mildew and rot (especially for natural fibers).
  • Keep them out of direct sunlight: UV rays break down rope fibers over time.
  • Coil or flake neatly: This prevents tangles and kinks. It also makes them easy to deploy.
  • Off the ground: Keep ropes off dirty floors or damp surfaces.

Conclusion

Marine ropes are essential for safe boating. They are made from strong materials like nylon and polyester. How they are built affects their use. Choosing the right rope and caring for it well keeps you safe at sea.
