Spiral Strand Cables
Description
A spiral strand is a composite of multiple layers of helically twisted steel wires. Layers are spun in opposite directions providing constructional and torque stability. The use of high strength steel wires makes it a good candidate as tension member in static applications. Our proprietary Aulone blocking compound fills the cable on the inside, reducing the impact of steel-steel contact, and adding an additional barrier against corrosion.
Application: They can be used as Variable amplitude rope on mobile crane, vessel crane and grab bucket crane. And can be used as hoisting rope on container crane, floating crane, portal crane and steel factory crane etc… Also be applicable to multi-multiplying power system with smaller hoisting height, double coiling block system with matched left-hand and right-hand pairs using for deep hoisting height.
Our Advantage
- High aixal stiffness
- Excellence Corrosion-resistant duo to Galfan( composed of 95% Zinc and 5% aluminum)
- High breaking force because of high strength wires
- Good clamping capabilities
- Torque balanced due to cross laying
- High fatigue resistance
- Multiple layers
- Parallel contact core
- Increased fatigue resistance
- Reduces contact stress
- Excellent corrosion resistance
- Galfan
- Galvanized

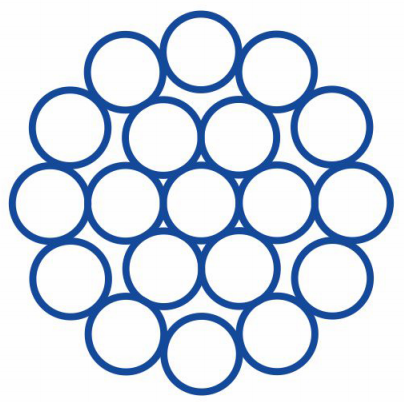

1×19 Single Twist Wire Rope
Designed for standing rigging and structural applications, 1×19 wire rope features a rigid construction with 19 twisted wires, offering high strength, stability, and minimal elongation.
- High Strength: Excellent load-bearing capacity for heavy-duty applications.
- Durability: Strong resistance to wear and long service life.
- Corrosion Resistance: Available in galvanized or smooth finishes.
- Rigidity & Stability: Low flexibility and minimal elongation under load.
- Applications: Ideal for structural cables, suspension systems, and tension structures.
Parameters
| Nominal diameter (mm) | Approximate nominal linear mass (kg/100m) | Nominal metal cross-sectional area (mm) | Wire rope grade | ||
| 1570 | 1670 | 1770 | |||
| Wire rope grade (kN) | |||||
| 10 | 48.5 | 58.4 | 82.6 | 87.7 | 93.1 |
| 11 | 58.7 | 70.7 | 99.9 | 106 | 113 |
| 12 | 69.8 | 84.1 | 119 | 126 | 134 |
| 13 | 82 | 98.8 | 140 | 148 | 157 |
| 14 | 95.1 | 115 | 162 | 172 | 182 |
| 14.5 | 102 | 123 | 174 | 184 | 196 |
| 16 | 124 | 150 | 211 | 224 | 238 |
| 18 | 157 | 189 | 268 | 284 | 302 |
| 19 | 175 | 211 | 298 | 316 | 336 |
| 20 | 194 | 234 | 330 | 351 | 372 |
| 22 | 235 | 283 | 400 | 424 | 451 |
| 26 | 328 | 395 | 558 | 593 | 629 |
| 28 | 380 | 458 | 647 | 687 | 730 |
| 29 | 408 | 491 | 694 | 737 | 783 |
| 30 | 436 | 526 | 743 | 789 | 838 |
