Wire Rope
High Performance Wire Rope Manufacturer & Supplier
Description
Surface condition: bright or galvanized steel wire rope
Lay direction: Lang lay
Application: This is a type of steel wire rope with excellent performance for mine hoisting systems, used in vertical shaft hoisting, inclined shaft hoisting, and other mining lifting applications.
Our Advantage
- Larger surface contact area
- Higher breaking strength compared to 6-strand wire ropes
- Excellent structural stability
- Outstanding fatigue resistance and wear resistance
- Advanced galvanizing process ensures superior corrosion resistance
- High-quality imported lubricating grease applied according to customer requirements

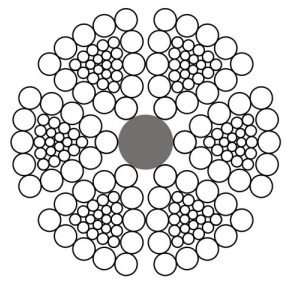

6X25TS-FC
Technical Parameters
| Diameter (mm) | Approximate Mass | Tensile strength (MPa) | |||
| 1570 | 1670 | 1770 | 1870 | ||
| Weight kg/100m) | Minimum breaking load (kN) | ||||
| 22 | 196 | 274 | 291 | 308 | 326 |
| 24 | 233 | 326 | 346 | 367 | 388 |
| 26 | 274 | 382 | 406 | 431 | 455 |
| 28 | 318 | 443 | 471 | 500 | 528 |
| 30 | 364 | 509 | 541 | 573 | 606 |
| 32 | 415 | 579 | 616 | 652 | 689 |
| 33 | 441 | 616 | 655 | 670 | 739 |
| 34 | 468 | 653 | 695 | 737 | 778 |
| 36 | 525 | 732 | 779 | 826 | 872 |
| 38 | 585 | 816 | 868 | 920 | 972 |
| 40 | 648 | 904 | 962 | 1020 | 1080 |
| 42 | 714 | 997 | 1060 | 1120 | 1190 |
| 44 | 784 | 1090 | 1160 | 1230 | 1300 |
| 46 | 857 | 1200 | 1270 | 1350 | 1420 |
| 48 | 933 | 1300 | 1390 | 1470 | 1550 |
| 50 | 1010 | 1410 | 1500 | 1590 | 1680 |
| 52 | 1100 | 1530 | 1630 | 1720 | 1820 |
| 54 | 1180 | 1650 | 1750 | 1860 | 1960 |
| 56 | 1270 | 1770 | 1890 | 2000 | 2110 |
| 58 | 1360 | 1900 | 2020 | 2140 | 2260 |
