Wire Rope
Rotation resistant and non-rotation wire ropes
Description

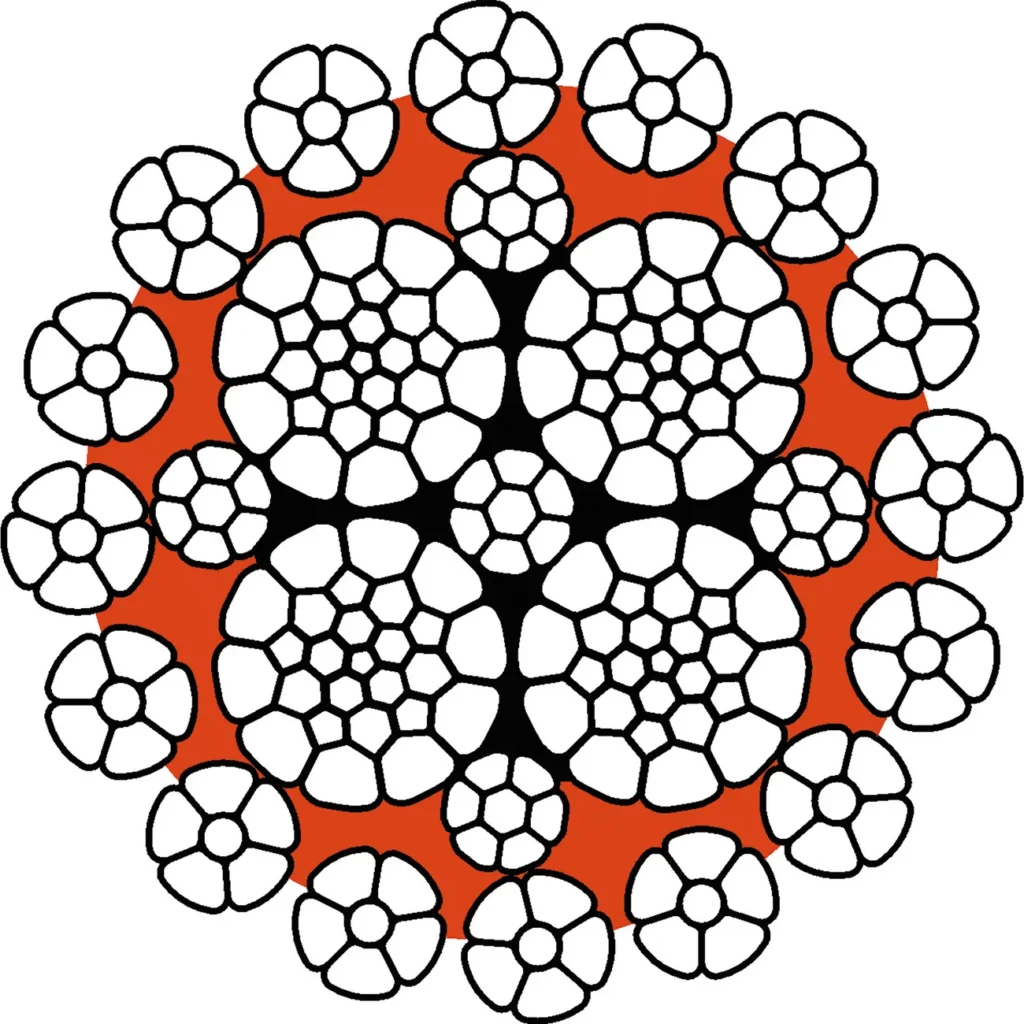

16XK7-EPIWRC(K) is a high performance compacted low rotational rope that combines varying multistrand rope designs to achieve excellent rotation resistance in high lift operations.
Multistrand Non-rotating Wire Ropes with Compacted Outer Strands, EN Standard.
Our Advantage
Aulone ropes offer excellent corrosion and dirt resistance, supported by the plastic insert
Superior spooling performance with high dimensional stability, even in multi-layer systems
High operational safety ensured by strong breaking force and stable torsional behavior
Longer service life and lower operating costs thanks to compacted strands
Plastic insert protects core lubrication for long-term reliability
Precise diameters and smooth spooling, even over long rope lengths
Technical Parameters
| Diameter/mm | Approx. weight (kg/100m) | Tensile strength (MPa) | ||
| 1770 | 1960 | 2160 | ||
| Minimum breaking load (kN) | ||||
| 8 | 33 | 52 | 58 | 64 |
| 9 | 41 | 66 | 73 | 80 |
| 10 | 51 | 81 | 90 | 99 |
| 11 | 62 | 99 | 109 | 120 |
| 12 | 73 | 117 | 130 | 143 |
| 13 | 86 | 138 | 152 | 168 |
| 14 | 100 | 160 | 177 | 195 |
| 15 | 115 | 183 | 203 | 224 |
| 16 | 131 | 208 | 231 | 254 |
| 17 | 147 | 235 | 261 | 287 |
| 18 | 165 | 264 | 292 | 322 |
| 19 | 184 | 294 | 325 | 359 |
| 20 | 204 | 326 | 361 | 397 |
| 21 | 225 | 359 | 398 | 438 |
| 22 | 247 | 394 | 436 | 481 |
| 23 | 270 | 431 | 477 | 526 |
| 24 | 294 | 469 | 519 | 572 |
| 25 | 319 | 509 | 564 | 621 |
| 26 | 345 | 550 | 609 | 672 |
| 27 | 372 | 594 | 657 | 724 |
| 28 | 400 | 638 | 707 | 779 |
| 29 | 429 | 685 | 758 | 836 |
| 30 | 459 | 735 | 815 | 898 |
| 31 | 490 | 782 | 866 | 955 |
| 32 | 522 | 834 | 927 | 1021 |
| 35 | 625 | 997 | 1104 | 1217 |
| 36 | 661 | 1055 | 1168 | 1288 |
| 39 | 776 | 1238 | 1371 | 1511 |
| 40 | 816 | 1303 | 1443 | 1590 |
