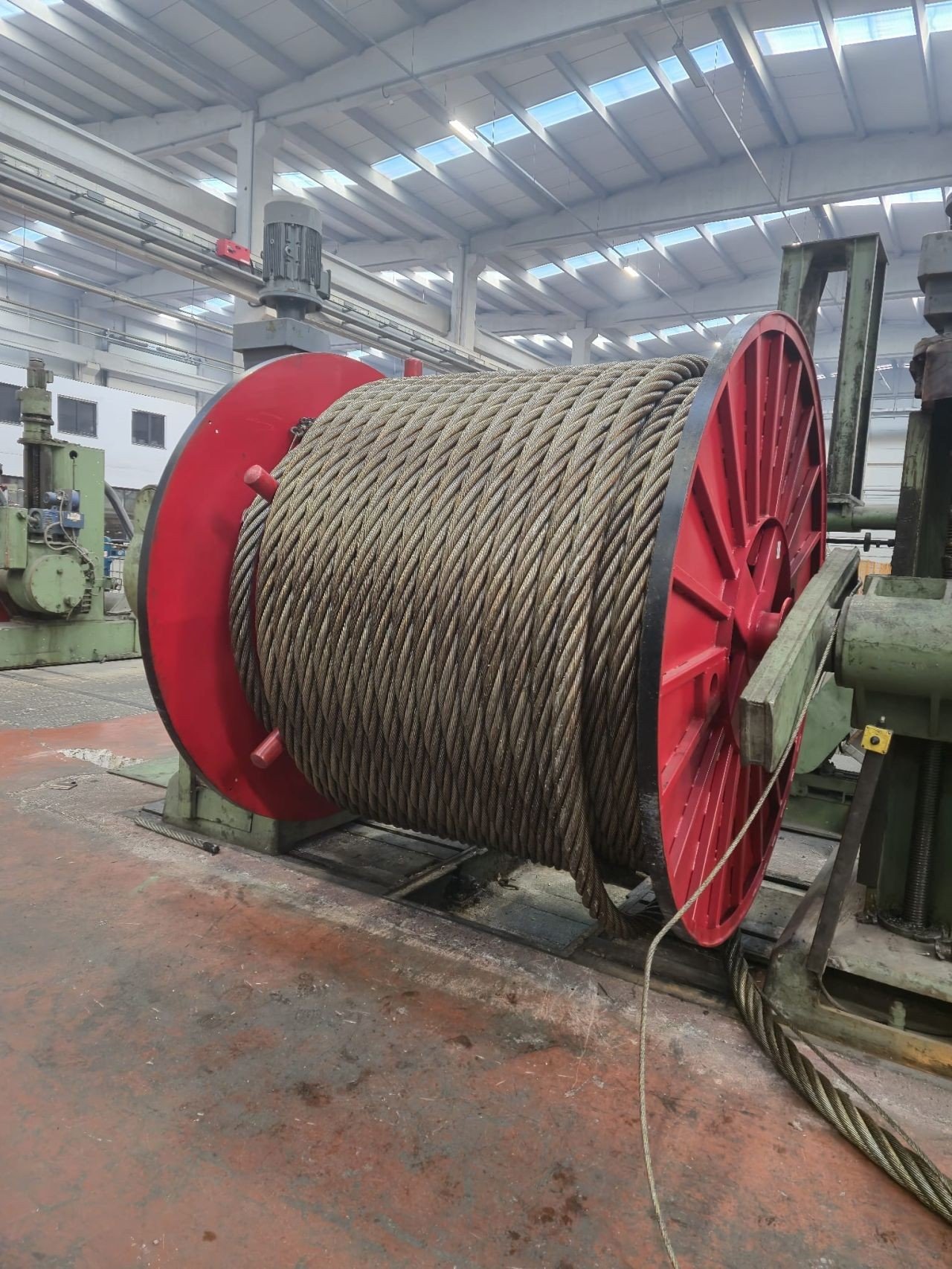

Wire ropes are integral to the operation of rotary drilling rigs, where they perform essential tasks such as hoisting, lifting, and controlling heavy equipment and drill strings. However, given the extreme loads and harsh operating conditions, wire ropes are susceptible to a range of issues. Among these, one of the most significant problems is “birdcaging,” but there are other common issues like kinking, corrosion, and fraying that can compromise the safety and performance of the wire rope. In this article, we will discuss these problems in detail and provide solutions for preventing and addressing them.
1. Birdcaging: Causes, Effects, and Solutions
1.1. What is Birdcaging?
“Birdcaging” refers to the phenomenon where the wire strands of the rope start to unravel and spread out, resembling a birdcage. This typically happens when the rope is subjected to sudden or sharp bends, causing the internal wires to shift or separate from their original positions. It’s a severe form of rope damage and can drastically reduce the rope’s strength, making it prone to further damage or failure.
1.2. Causes of Birdcaging
- Sharp Bends: Sharp bends, especially at the sheave or pulley, are one of the most common causes of birdcaging. When the rope is forced to bend at a tight radius, the inner strands are compressed, causing them to misalign and potentially uncoil.
- Overloading: Excessive tension or overload beyond the rope’s rated capacity can cause deformation and strain, contributing to the onset of birdcaging.
- Improper Spooling: If the wire rope is not spooled correctly on the drum, it may develop uneven wear and stress, which can lead to birdcaging.
1.3. Effects of Birdcaging
- Reduced Strength: Birdcaging weakens the rope by disrupting the internal structure. The rope loses its ability to handle the loads it was designed for.
- Increased Friction: The unraveling of strands increases friction, causing more wear on the rope and on the pulleys or sheaves.
- Failure Risk: If birdcaging is left unaddressed, it can lead to wire breakage and total rope failure.
1.4. Solutions to Prevent Birdcaging
- Avoid Sharp Bends: Always ensure that the wire rope is spooled properly and that it passes over pulleys and sheaves with a large enough radius. Use appropriate sheaves with a radius that matches the rope’s diameter to prevent tight bending.
- Monitor Load Limits: Ensure that the load placed on the rope does not exceed its rated capacity. Install load monitoring systems to ensure safe operation.

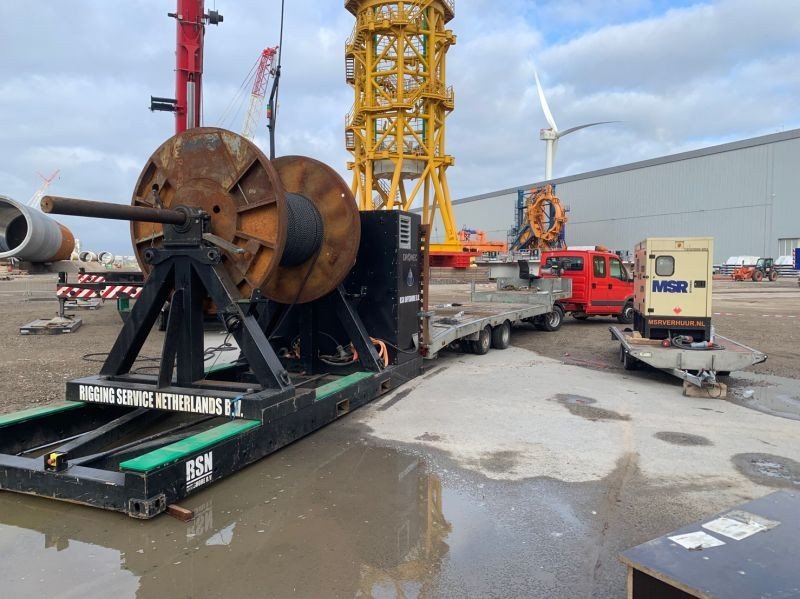

- Proper Spooling: Make sure the wire rope is wound onto the drum evenly. Uneven spooling can create localized stress, which may lead to birdcaging. Check the spooling frequently and correct any misalignment immediately.
- Regular Inspections: Conduct routine inspections to check for early signs of birdcaging. If detected, remove the rope from service and replace or repair it before it causes further damage.
2. Kinking: Causes, Effects, and Solutions
2.1. What is Kinking?
Kinking occurs when the wire rope develops a tight, sharp bend or twist, causing the strands to deform and the rope to lose its strength. Kinks typically occur when the rope is subjected to sudden changes in direction or improperly handled.
2.2. Causes of Kinking
- Improper Handling: If the rope is dropped or coiled incorrectly, it can develop kinks. Allowing the rope to fall or drag on the ground can cause the strands to shift out of alignment, leading to kinks.
- Sharp Angles: Similar to birdcaging, sharp angles in the rope’s path (such as over a pulley) can cause the strands to bend, resulting in a kink.
- Overloading: Overloading the rope, especially during hoisting or lifting operations, can cause localized deformation, leading to kinking.
2.3. Effects of Kinking
- Strength Loss: Kinks create weak points in the rope, making it more susceptible to failure under load.
- Operational Inefficiency: Kinking can interfere with the smooth operation of the wire rope, causing it to move erratically and potentially damaging other components of the rig.
2.4. Solutions to Prevent Kinking
- Proper Handling: Avoid dragging the wire rope or dropping it onto hard surfaces. Ensure that the rope is handled carefully during installation and removal to prevent twisting and bending.
- Smooth Movement: Ensure that the rope moves smoothly over pulleys and drums, and avoid any sharp angles. Use larger sheave diameters to reduce the risk of kinking.
- Correct Spooling: Ensure that the rope is spooled evenly on the drum. Tight or uneven spooling can cause twists, leading to kinks.
- Load Management: Ensure that the rope is not overloaded. Overloading can exacerbate kinking and lead to permanent deformation of the rope.
3. Fraying and Wire Breakage: Causes, Effects, and Solutions
3.1. What is Fraying and Wire Breakage?
Fraying refers to the process where the outer strands of the wire rope begin to unravel, exposing the internal wires. Wire breakage happens when individual wires in the rope snap, either due to fatigue, overloading, or wear.
3.2. Causes of Fraying and Wire Breakage
- Abrasion: Constant friction with surfaces such as pulleys, drums, or other machinery can cause the outer strands of the rope to wear and fray.
- Corrosion: Exposure to moisture, salt, and chemicals can corrode the wires, making them brittle and more prone to breaking.
- Excessive Wear: Continuous use without proper lubrication and maintenance can cause the rope to wear out and fray, leading to broken wires.
- Improper Use: Bending the rope at angles sharper than its designed radius or twisting it improperly can weaken the individual strands and cause wire breakage.
3.3. Effects of Fraying and Wire Breakage
- Reduced Load Capacity: Fraying and wire breakage directly reduce the rope’s load capacity and strength.
- Increased Risk of Rope Failure: With broken wires or frayed strands, the rope becomes unstable, increasing the likelihood of sudden failure under load.
- Damage to Equipment: Broken wires or frayed strands can cause the rope to jam or interfere with the movement of pulleys and drums, potentially damaging the rig’s equipment.
3.4. Solutions to Prevent Fraying and Wire Breakage
- Proper Lubrication: Regularly lubricate the wire rope to reduce friction and prevent wear. Use the correct type of lubricant that is suitable for the operating environment.
- Regular Inspections: Perform daily visual inspections to look for signs of fraying, broken wires, or other damage. Replace any sections of the rope that show significant wear.
- Protective Coatings: Consider using galvanized or plastic-coated wire ropes to protect against corrosion and wear, especially in harsh or corrosive environments.
- Avoid Overloading: Never exceed the rope’s load capacity. Overloading can cause rapid wear and increase the likelihood of fraying and wire breakage.
- Proper Routing: Ensure that the rope is routed smoothly over pulleys and drums, and avoid any unnecessary abrasions or sharp bends.
4. Conclusion: Proper Operation and Maintenance are Key
The performance of wire ropes in rotary drilling rigs is directly influenced by how they are handled, maintained, and operated. Issues like birdcaging, kinking, and fraying can lead to significant safety hazards, reduced efficiency, and costly repairs. By ensuring proper handling, monitoring load limits, regular inspections, and timely lubrication, many of these problems can be prevented.
When wire ropes are properly maintained and operated within their design parameters, they will function optimally, providing long service life and enhancing the safety and efficiency of drilling operations. Addressing issues promptly and implementing preventive measures ensures that the wire ropes can continue to perform at their best, minimizing downtime and extending the lifespan of both the wire ropes and the drilling rig.
