Open Wedge Socket
Open Wedge Socket for Wire Rope
The wire rope wedge socket is a widely used mechanical component designed for various cranes, grabs, and heavy-duty equipment. It is mainly used for fixing, fastening, and connecting wire ropes in lifting and rigging applications.
Featuring a simple yet robust structure, the wedge socket is easy to install and remove, making it highly practical for on-site operations. It ensures secure rope anchoring while allowing quick adjustment and inspection, offering excellent safety and reliability in service.
Manufactured from high-strength forged alloy steel, the open wedge socket provides significantly enhanced load-bearing capacity, wear resistance, and durability, making it suitable for demanding working conditions and long-term use.
Wire Rope Wedge Socket:
Wire rope wedge socket is a kind of compenent, which is applicable to various cranes, grabs and large equipments. It is used for fixing, fastening and connecting of wire rope, and has advantages of simple structure, easy to use, safe and reliable, etc. It is made from forged alloy steel that makes the strength of it have improved greatly.
Product Details:
1. Model: Wire Rope Wedge Socket
2. Material: Carbon Steel
3. Technology: Casting
4. Surface: Galvanized, Painted
5. Usage: Wire Rope Fitting
6. Size: M06-M65
7. Packaging: Gunny Bag or Caron then on Steel Pallet
8. Special Specifications and Marks can be made According to customer’s Requirements.

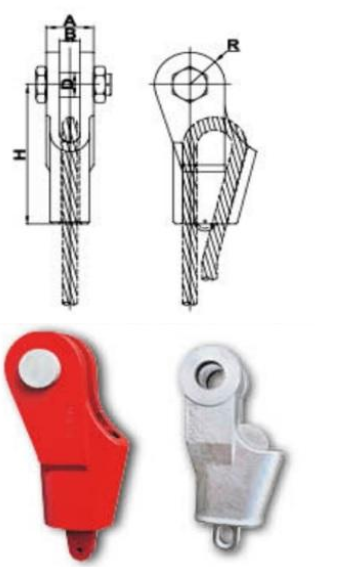

Specification:
| Product Code | Diameter of Wire Rope | B | C | D | R | H |
| mm | mm | mm | mm | mm | mm | |
| M06 | 6 | 13 | 25 | 16 | 20 | 90 |
| M08 | 8 | 15 | 27 | 18 | 22 | 100 |
| M10 | 10 | 18 | 30 | 20 | 24 | 120 |
| M12 | 12 | 20 | 36 | 25 | 30 | 155 |
| M14 | 14 | 23 | 41 | 30 | 36 | 185 |
| M16 | 16 | 26 | 48 | 34 | 40 | 195 |
| M18 | 18 | 28 | 52 | 36 | 44 | 195 |
| M20 | 20 | 30 | 58 | 38 | 45 | 220 |
| M22 | 22 | 32 | 64 | 40 | 48 | 240 |
| M24 | 24 | 35 | 71 | 50 | 60 | 260 |
| M26 | 26 | 38 | 76 | 55 | 66 | 280 |
| M28 | 28 | 40 | 78 | 60 | 72 | 305 |
| M32 | 32 | 44 | 84 | 65 | 78 | 360 |
| M36 | 36 | 48 | 96 | 70 | 84 | 390 |
| M40 | 40 | 55 | 103 | 75 | 90 | 470 |
| M45 | 45 | 60 | 118 | 80 | 98 | 540 |
| M50 | 50 | 65 | 130 | 85 | 102 | 600 |
| M55 | 55 | 70 | 146 | 90 | 108 | 680 |
| M65 | 65 | 75 | 170 | 100 | 120 | 780 |
