Stainless Steel Wire Mesh Manufacturer
Description
Aulone stainless steel wire mesh is manufactured by weaving high-quality stainless steel wires in a warp and weft pattern. We produce a wide range of material grades, including 302 SS, 304 SS, 304L SS, 310 SS, 316 SS, 316L SS, 317L SS, 321 SS, 330 SS, 347 SS, 410 SS, and 430 SS.
Our stainless steel wire mesh is primarily used for filtration and screening of gases, liquids, and solids, as well as media separation and other industrial applications. With excellent corrosion resistance, durability, and precision, Aulone wire mesh offers reliable performance for a variety of industrial, commercial, and scientific uses.
What is Stainless Steel Wire Mesh?
Stainless steel wire mesh is manufactured by weaving high-quality stainless steel wires in a warp and weft pattern. It is primarily used for filtration and screening of gases, liquids, and solids, as well as media separation. With excellent resistance to acid, alkali, high temperature, and abrasion, it is widely applied across industries such as petroleum, petrochemical, automotive, new energy, food, pharmaceutical, and more.
Types of Stainless Steel Wire Mesh
1. Square Mesh
Square mesh is typically woven with equal wire diameters and mesh counts in both the warp and weft directions. Rectangular mesh, by contrast, has different mesh counts for warp and weft. Square mesh can be woven in plain weave or twill weave, offering versatility for general filtration applications.
2. Dutch Weave Mesh
Dutch weave mesh, also known as Dutch cloth, is made from high-quality stainless steel wire. The key feature is the significant difference in wire diameter and density between the warp and weft directions, which enhances mesh thickness, filtration precision, and durability compared to square mesh.
Reverse Dutch Weave: A specialized filter mesh where the warp mesh count is significantly higher than the weft, and the warp wire diameter is smaller than the weft wire diameter. It is more complex to weave than plain Dutch weave, offering high mesh strength, superior filtration accuracy, and efficiency.
Dutch weave mesh is commonly used in aerospace, petroleum, and chemical industries. It is ideal for plastic wire drawing machines, tape casting machines, film coating machines, and applications such as plastic woven bags, plastic films, ink filtration, and wastewater treatment.

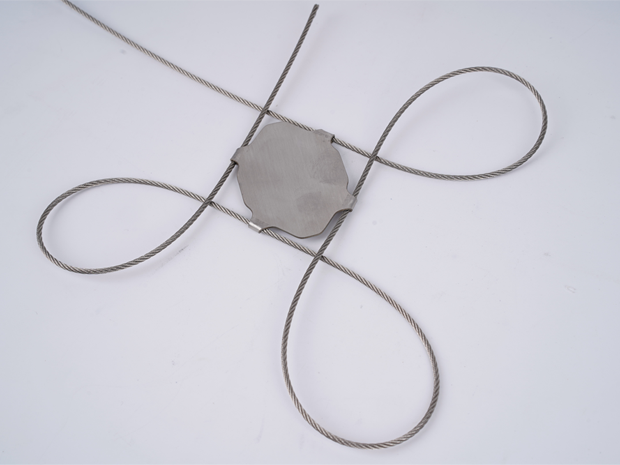

Stainless Steel Rope Mesh with Plates – Customizable Design & Durability
Made from premium 316L/304 stainless steel, our stainless steel rope mesh with plates system surpasses industry standards in durability and corrosion resistance, delivering stable performance in coastal and high-traffic urban environments with minimal maintenance.
Advantages of Aulone Stainless Steel Systems
1. Exceptional Durability
Made entirely from 304 or 316L stainless steel, our products deliver outstanding resistance to weather, corrosion, and wear. Customizable options such as rope structure, wire diameter, and plate thickness allow you to meet any load-bearing requirement with confidence.
2. Flexible Customization for a Perfect Fit
All dimensions and finishes, including colors, can be fully tailored to align seamlessly with your design vision, ensuring an ideal fit for any project.
3. Blends Decorative and Functional Elements
The innovative combination of ropes and metal panels creates a visually striking, three-dimensional layered effect, perfect for building facades, interior partitions, and landscape features. Stainless steel also offers superior fire resistance, making it suitable for a broader range of applications compared to other materials.
4. Balances Transparency and Privacy
Our systems maintain an open, airy spatial feel while functioning as screens or railings, effectively balancing ventilation, light, and privacy needs.
Structure
Wire rope structure:7 × 7, 7 × 19
Opening angle:20°, 30°, 60°, 70° and 75° are set as standard opening, and optimal stretched at 60°.
Ferrule type: both ferrule and opened ferrule available
M:mesh aperture
D:diameter
