How Can I Tighten Wire Rope Without Using a Turnbuckle?

Loose wire rope can be a real headache. It might mean a sagging fence or a less secure load. You need it tight, but what if a turnbuckle isn’t handy?

Yes, you can tighten wire rope using tools like wire rope clips, come-alongs, or even manual methods for lighter ropes. These ensure your rope is secure and functional.

I remember a client in Vietnam, working on a marine project, faced this exact issue. Their main turnbuckles were delayed, but the work couldn’t stop. We discussed some practical alternatives. Let’s explore them.

What Tools Can I Use Instead of a Turnbuckle for Wire Rope?

Sometimes, you just don’t have a turnbuckle available. Or maybe the situation calls for a different approach. Knowing alternatives is very useful in our line of work.You can use a come-along (lever hoist), a wire rope puller (like a Tirfor grip), or careful use of wire rope clips. Each tool has its best use case.

Let’s dive deeper into these tools. At Aulone, we always advise clients to choose the right tool for the job for safety and efficiency. This is true even for temporary solutions.

Using a Come-Along (Lever Hoist)

A come-along is a hand-operated winch with a lever handle. It’s designed for pulling, lifting, and tensioning.
I find them very versatile. Many of our customers in construction and mining keep them on site.

• How it works: You attach one hook to a fixed anchor point. The other hook grabs the wire rope (often via a temporary sling or grip). Then, you operate the lever to winch the rope tighter.
• Pros: Provides significant mechanical advantage. Allows for controlled, gradual tightening. Common and relatively inexpensive.
• Cons: Can be bulky. Requires a solid anchor point.

Here’s a quick comparison:

Using a Wire Rope Puller (Grip Puller / Tirfor Style)

These tools grip the wire rope directly. They allow the rope to pass through the mechanism while pulling it.
One of my Russian clients, Maksim, once asked about these for a specific setup. He needed precise tension over a long span.

• How it works: The rope feeds through the puller. Levers or a handle operate internal jaws that grip and pull the rope.
• Pros: Can pull very long lengths of rope. Excellent for precise tensioning.
• Cons: Can be more expensive than a come-along. The jaws must be suitable for your rope diameter and construction.
• Safety Note: Ensure the jaws are clean and in good condition to prevent rope damage.

Using Wire Rope Clips Strategically

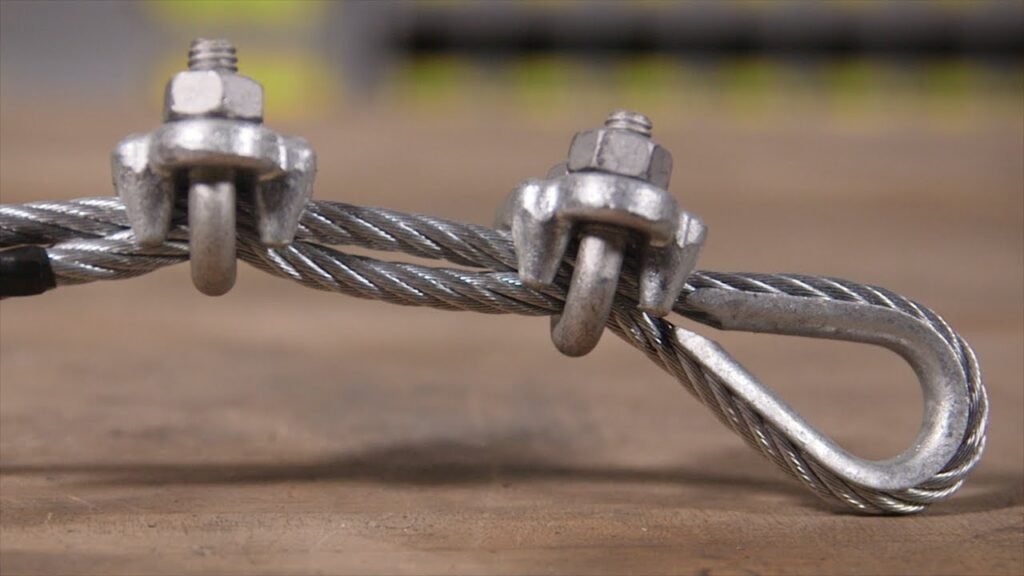

Wire rope clips (like U-bolt clips or fist grips) are primarily for forming eyes or joining ropes. But, you can use them in a sequence to achieve some tension.
This is more of a “get by” method for lighter loads.

• How it works:
  1. Form a small, temporary loop or “eye” at the end of your wire rope using one clip. Make it loose enough to slip over an anchor.
  2. Pull the main body of the rope as tight as you can by hand or with a simple lever (like a crowbar, used carefully).
  3. While holding the tension, apply another wire rope clip (or several, correctly spaced) to clamp the pulled rope to its standing part near the anchor or the other end of the connection.
• Pros: Uses readily available components. Good for situations where only minimal tension is needed.
• Cons: Limited tensioning capability. Relies heavily on friction from the clips. Not for critical applications or heavy loads.

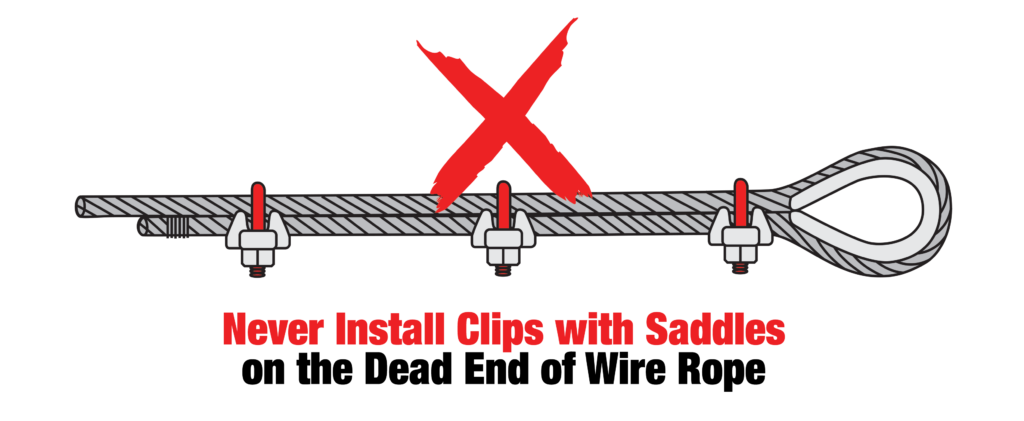

• Crucial Rule: Always remember “Never saddle a dead horse” for U-bolt clips. The U-bolt goes over the dead end (the short end) of the rope. The saddle goes on the live end (the load-bearing part).

How Do I Make a Wire Rope Tighter Manually?

Sometimes you only have basic tools or just your hands. This is usually for smaller diameter ropes and non-critical applications, like garden wire or a very light temporary barrier.

To tighten manually, pull the rope as taut as possible. Then, secure it using appropriate knots (for fiber core) or multiple wire rope clips for steel core ropes.

This approach requires care and understanding its limits. I’ve seen it done for temporary setups in agriculture or small DIY projects.

The “Spanish Windlass” Technique (Use with Caution)

This is an old-school method. It can apply considerable force, so be careful.

• How it works:
  1. Secure one end of the rope.
  2. Loop the rope around the other anchor point, bringing it back on itself.
  3. Insert a strong stick or bar between the two parts of the rope in the middle of the span.
  4. Twist the stick. This shortens the rope by winding the two parts around each other, creating tension.
  5. Once tight, you must secure the stick to prevent it from unwinding.
• Pros: Can achieve good tension with simple materials.
• Cons: Can over-tension and damage the rope if not done carefully. Securing the twisted bar can be tricky. Best for ropes, not wire ropes, but sometimes adapted. More suitable for natural fiber ropes.
• Aulone Warning: We generally don’t recommend this for our high-quality steel wire ropes, especially our EN12385-4 compliant ones. It can create kinks and uneven stress.

Leveraging and Clamping

This is essentially what we discussed with wire rope clips, but with more emphasis on the manual pull.

• How it works:
  1. Anchor one end.
  2. Use a pry bar or a sturdy piece of wood as a lever. Place a fulcrum point near the anchor you’re pulling towards.
  3. Wrap the rope (or a temporary sling attached to the rope) around the end of your lever.
  4. Pull on the lever to get the rope as tight as you can.
  5. While holding this tension (you might need a helper), quickly secure the rope with wire rope clips.
• Pros: More controlled than just hand-pulling.
• Cons: Still limited by your strength and the lever. Requires good coordination to secure the clips under tension.

What Safety Precautions Should I Take When Tightening Wire Rope?

Safety is always my top priority when discussing wire rope applications with clients, from Singapore to Canada. Tightening rope, by any method, has risks.

Always wear gloves and eye protection. Inspect the rope and equipment. Never exceed the rope’s Working Load Limit (WLL). Ensure stable footing and a clear work area.

Let’s break down key safety steps. These are non-negotiable, whether you’re using a turnbuckle or an alternative.

Personal Protective Equipment (PPE)

This is your first line of defense.

• Gloves: Wire ropes can have broken wires (jaggers) that can cause nasty cuts. Use heavy-duty leather gloves.
• Eye Protection: Wires can snap or fray, sending small pieces flying. Safety glasses or goggles are essential.
• Sturdy Footwear: Good grip helps prevent slips, especially when pulling or leveraging.
• Hard Hat: If working overhead or with potential falling objects.

Inspect Rope and Equipment

Before you even start, check everything. This is something my quality-conscious clients like Maksim always appreciate.

• Wire Rope: Look for kinks, broken wires, corrosion, or crushing. A damaged rope has a reduced breaking load. Our Aulone ropes come with high breaking load specifications, but damage negates this.
• Tools (Come-along, clips, etc.): Check for cracks, wear, or deformation. Ensure moving parts work smoothly. For clips, ensure threads are not stripped.
• Anchor Points: Ensure they are strong enough to handle the anticipated load.

Understand Working Load Limits (WLL)

Never guess the load or the rope’s capacity.

• All our ropes at Aulone can be supplied with certificates (BV, CE, RSRM if needed) showing their Minimum Breaking Load (MBL).
• The WLL is the MBL divided by a safety factor (typically 5 for general use, but can vary).
• Ensure the tension you apply doesn’t exceed the WLL of the rope OR any component in the system (clips, anchors, pulling tool).

Controlled Operation and Clear Area

Rushing leads to accidents.

• Gradual Tension: Apply force slowly and smoothly. Watch for any signs of distress in the rope or equipment.
• Clear Zone: Keep people away from the line of pull. If a rope or tool fails under tension, it can whip out with dangerous force.
• No Standing in Line of Fire: Never position yourself directly in line with a tensioned rope.
• Stable Stance: Make sure you have good footing and won’t be pulled off balance.

These precautions help ensure that your tightening job is not only effective but also safe for everyone involved.

Conclusion

Tightening wire rope without a turnbuckle is certainly possible. Use tools like come-alongs or clips carefully. Always prioritize safety and choose the right method for your specific needs.
