Many buyers feel confused when choosing wire rope. The wrong structure can cause early failure, downtime, and extra cost. I often see projects delayed because of this simple choice.
6×19 and 6×36 class ropes are steel wire ropes with different strand constructions. 6×19 is more rigid and wear-resistant, while 6×36 is more flexible and better for bending fatigue in dynamic applications.
I remember one order where the client chose the wrong type for a crane. It failed early. After we switched structure, the problem stopped. That moment changed how I explain rope selection.
What does 6×19 wire rope structure really mean?
I often get this question from new buyers. The numbers look simple, but they carry key meaning.
6×19 means the rope has 6 strands, and each strand contains around 19 wires. This structure gives a balance of strength, abrasion resistance, and moderate flexibility for general industrial use.

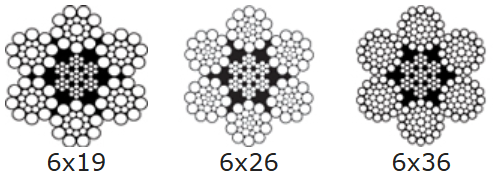

6×19 structure
When I inspect this structure, I focus on wire size and layout. The wires are thicker compared to higher-class ropes. That is why the surface is tougher.
Key characteristics
| Feature | Description |
|---|---|
| Flexibility | Medium |
| Abrasion resistance | High |
| Fatigue resistance | Moderate |
| Typical use | Cranes, hoisting |
My observation in projects
I often suggest 6×19 for lifting jobs with rough surfaces. It handles wear better. But I do not recommend it for repeated bending over small sheaves.
What makes 6×36 wire rope more flexible?
Flexibility matters in many lifting systems. I learned this the hard way in early exports.
6×36 wire rope has more wires per strand, which makes it more flexible. It bends easily and performs better in applications with frequent movement and smaller sheaves.

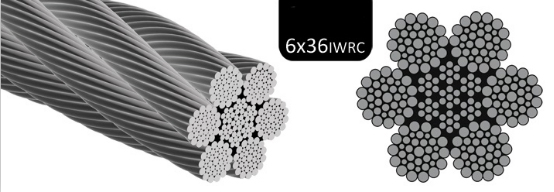

6×36 performance
More wires mean smaller individual wire diameters. This improves bending ability but reduces surface toughness.
Structural comparison
| Factor | 6×19 | 6×36 |
|---|---|---|
| Wire count | Lower | Higher |
| Wire size | Thicker | Thinner |
| Flexibility | Lower | Higher |
| Wear resistance | Higher | Lower |
Real-world insight
I once supplied ropes to a port crane project. The client switched from 6×19 to 6×36. The rope life increased because bending fatigue was the main issue, not abrasion.
6×19 IWRC Strength and Weights Chart (inches)
| Diameter (in) | Weight (lb/ft) | Minimum Breaking Force (tons of 2000 lbs.) | ||
|---|---|---|---|---|
| IPS | XIP | XXIP | ||
| 1/4 | 0.116 | 2.94 | 3.40 | — |
| 5/16 | 0.18 | 4.58 | 5.27 | — |
| 3/8 | 0.26 | 6.56 | 7.55 | 8.30 |
| 7/16 | 0.35 | 8.89 | 10.2 | 11.2 |
| 1/2 | 0.46 | 11.5 | 13.3 | 14.6 |
| 9/16 | 0.59 | 14.5 | 16.8 | 18.5 |
| 5/8 | 0.72 | 17.9 | 20.6 | 22.7 |
| 3/4 | 1.04 | 25.6 | 29.4 | 32.4 |
| 7/8 | 1.42 | 34.6 | 39.8 | 43.8 |
| 1 | 1.85 | 44.9 | 51.7 | 56.9 |
| 1 1/8 | 2.34 | 56.5 | 65 | 71.5 |
| 1 1/4 | 2.89 | 69.4 | 79.9 | 87.9 |
| 1 3/8 | 3.50 | 83.5 | 96 | 106 |
| 1 1/2 | 4.16 | 98.9 | 114 | 125 |
| 1 5/8 | 4.88 | 115 | 132 | 146 |
| 1 3/4 | 5.67 | 133 | 153 | 169 |
| 1 7/8 | 6.50 | 152 | 174 | 192 |
| 2 | 7.39 | 172 | 198 | 217 |
| 2 1/8 | 8.35 | 192 | 221 | 243 |
| 2 1/4 | 9.36 | 215 | 247 | 272 |
| Available galvanized at 10% lower strengths, or in equivalent strengths on special request. Special constructions and diameters available upon request – please contact us directly. | ||||
How do I choose between 6×19 and 6×36 ropes?
This is the most practical question I deal with every week.
I choose 6×19 for abrasive environments and 6×36 for dynamic systems with frequent bending. The decision depends on working conditions, not just price or availability.
Selection logic
I always ask three simple questions before recommending a rope.
Selection checklist
| Question | Why it matters |
|---|---|
| Is there frequent bending? | Affects fatigue life |
| Is the environment rough? | Affects wear |
| What is the load cycle? | Impacts durability |
My decision method
If bending is frequent, I move toward 6×36. If surface wear is the main concern, I stay with 6×19. I never ignore certification needs like EN12385-4.
Where are 6×19 and 6×36 ropes commonly used?
Applications define performance. I always match rope to use case.
6×19 ropes are common in cranes and lifting equipment, while 6×36 ropes are widely used in elevators, hoists, and systems requiring smooth bending and flexibility.
Applications
Each industry has its own demands. I adjust recommendations based on experience.
Application mapping
| Industry | Preferred Type |
|---|---|
| Construction cranes | 6×19 |
| Elevators | 6×36 |
| Mining hoists | 6×36 |
| Marine winches | Both |
My export experience
In Southeast Asia, crane companies prefer 6×19 due to harsh environments. In contrast, elevator projects in the Middle East choose 6×36 for smooth operation.
How do certifications and quality affect rope performance?
Many buyers focus only on structure. I always push them to look deeper.
Certifications like EN12385-4, BV, and DNV ensure the rope meets strict safety and performance standards. High-quality materials and controlled production improve strength, durability, and reliability.
Quality control
I run production across four lines. Each batch follows strict checks.
Quality factors
| Factor | Impact |
|---|---|
| Material grade | Strength |
| Galvanization | Corrosion resistance |
| Lubrication | Service life |
| Certification | Compliance |
My production insight
I always tell buyers that low price often means compromise. I have seen ropes fail early because of poor steel quality or missing certification.
Can customization improve rope performance for specific projects?
Standard ropes do not always fit real needs. I deal with custom requests often.
Yes, customization like coating, diameter adjustment, and specific construction can improve rope performance for unique working conditions and extend service life.
Customization
I often adjust rope features based on client feedback.
Custom options
| Option | Benefit |
|---|---|
| Plastic coating | Extra protection |
| Galvanization | Anti-corrosion |
| Logo marking | Brand identity |
| Special construction | Performance tuning |
My practical case
A mining client needed longer rope life in wet conditions. I suggested galvanized 6×36 with lubrication. The result was much better durability.
Conclusion
6×19 and 6×36 ropes serve different needs. I always match structure to application, not just price or habit.
