Does your project need a strong, reliable wire rope? Are you worried about weak points in your current ropes? Continuous loop wire ropes solve these problems by offering unmatched strength.
Continuous loop wire ropes are made by carefully splicing the ends of a single wire rope together, creating an endless, seamless loop. This process removes the need for hardware and increases overall strength.
You might wonder how a rope can become “endless.” I remember seeing my first continuous loop rope. It looked so simple, yet I knew the engineering behind it was complex. Let’s explore how this magic happens.
What is the first step in making an endless wire rope?
Making a great product starts with great material. For continuous loop ropes, this means choosing the right type of wire rope. I always focus on quality from the very start.
The first step in making an endless wire rope is selecting the correct type and length of high-quality wire rope for the specific application.

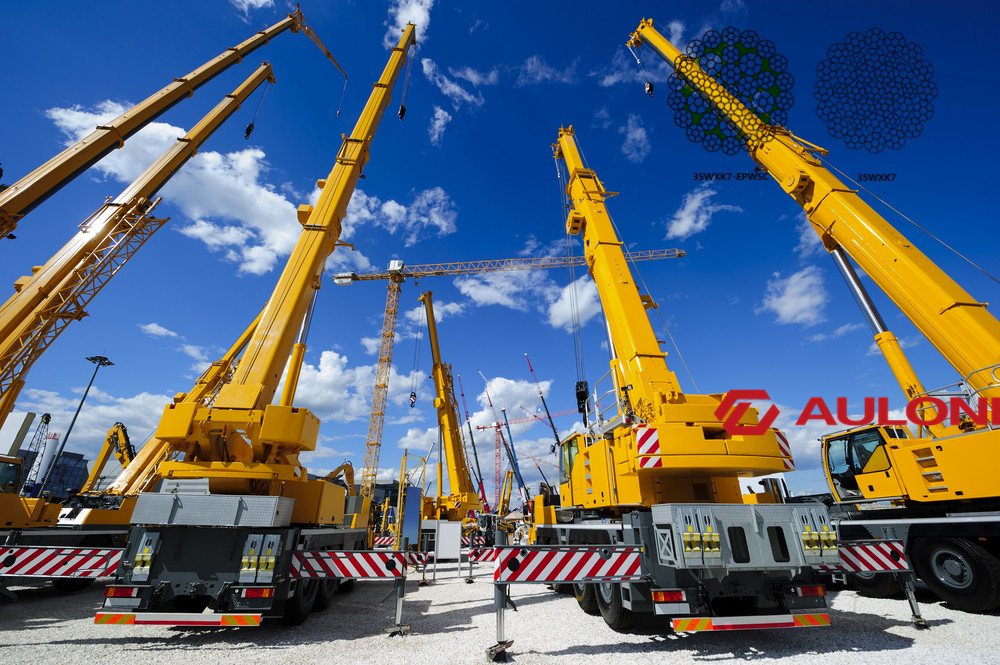

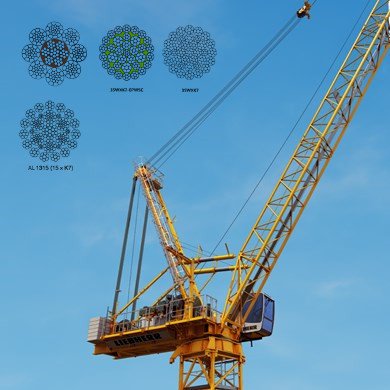

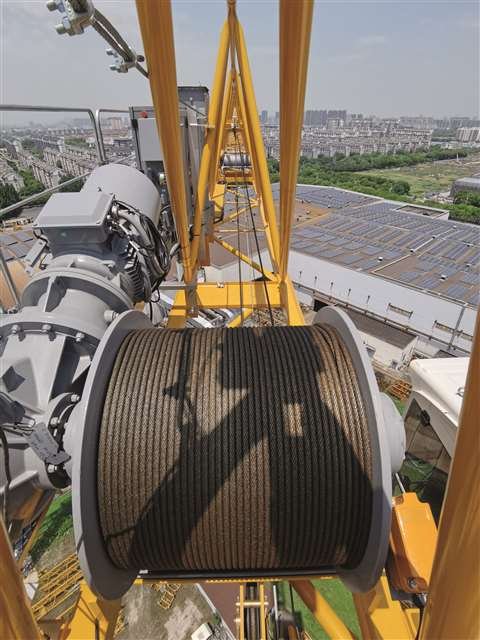

Choosing the right base rope is crucial. Different jobs need different ropes. For example, a crane needs a different rope than a marine application.
Wire Rope Selection Criteria
Selecting the perfect wire rope is more than just grabbing any length. It involves understanding the demands of the job. We look at several key factors to ensure the final product meets high standards.
Material Type
The material affects strength and how well it resists corrosion.
| Material | Features | Common Uses |
|---|---|---|
| Carbon Steel | High strength, good for heavy lifting | Cranes, elevators |
| Stainless Steel | Excellent corrosion resistance, aesthetic | Marine, food processing |
| Galvanized Steel | Good corrosion resistance, cost-effective | General outdoor use |

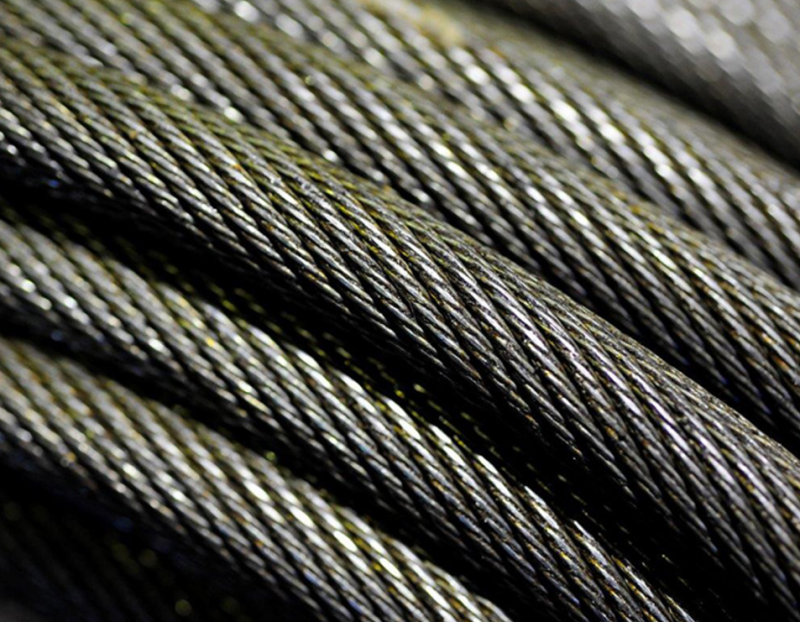

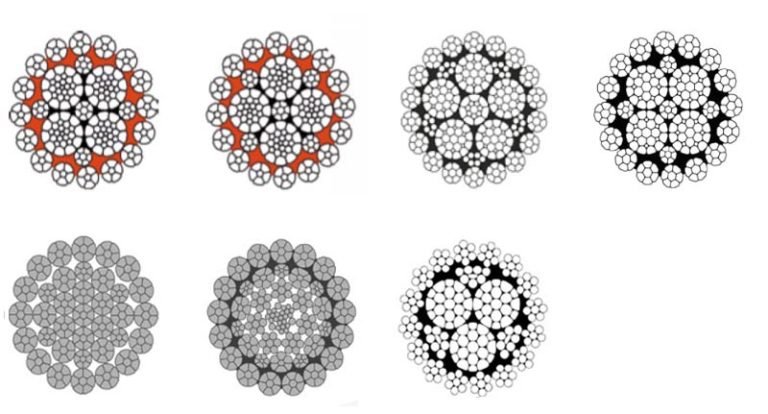

Construction (Lay and Core)
The way the wires are twisted and the core type impact the rope’s flexibility and strength. Different constructions offer varying levels of strength and fatigue resistance. For example, a 6×36 fiber core rope is more flexible than a 6×19 independent wire rope core (IWRC).
Diameter and Length
These are set by the working load limit (WLL) and the reach needed for the loop. We must ensure the rope can handle the expected load safely. The length is precise because any error impacts the final loop size.
Tensile Strength
We must choose a rope with a high tensile strength. This ensures the rope can withstand pulling forces without breaking. Our ropes offer high tensile strength, giving peace of mind.
Compliance and Certifications
For global use, meeting international standards is key. We offer ropes compliant with EN12385-4. We can also provide BV, CE, RMRS, DNV, and ABS certificates. This shows our commitment to high quality.
How do you prepare the ends of a wire rope for splicing?
Preparing the rope ends is like preparing for a delicate surgery. Precision is everything. If the ends are not perfect, the splice will not hold.
To prepare the wire rope ends for splicing, the rope is carefully unlaid into individual strands, and then the core is often removed or untwisted, setting up the rope for interweaving.
This step is critical. Any mistake here can affect the strength and life of the finished loop. It requires skill and attention to detail.
Dive Deeper: Precision in End Preparation
Preparing the ends for splicing involves several exact steps. This process ensures the strands can be perfectly integrated, creating a strong, almost invisible joint.
Unlaying the Rope
We carefully unwind the outer strands of the wire rope. This exposes the core and allows us to work with individual strands. This process needs a steady hand to avoid damaging the wires.
Removing or Untwisting the Core
In some cases, especially for larger ropes, the core (fiber or independent wire rope core) is removed from the ends. For smaller ropes, the core might just be untwisted to make space for the splice. This creates a hollow space where the opposing strands will be laid.
Marking the Rope
Precise markings are made along the rope from the ends. These marks guide where each strand will be woven back into the rope body. Accuracy here is vital for a strong and even splice.
Tapering the Strands
Each individual strand is then carefully tapered. This means thinning out the end of each strand. Tapering helps the splice blend in smoothly, reducing bulk and creating a uniform diameter. This makes the finished loop look clean and strong.
What methods are used to splice continuous loop wire ropes?
Splicing is an ancient art, but for wire ropes, it uses modern tools and techniques. The goal is to make the splice as strong as the original rope.
There are several methods for splicing continuous loop wire ropes, with the long splice being the most common, involving interweaving individual strands from each end into the body of the opposing rope.
Choosing the right splicing method depends on the rope type and its use. Each method has its benefits, but all require high skill.
Splicing Techniques
Splicing is where the “endless” part truly happens. It requires expert hands and deep knowledge of wire rope structures.
The Long Splice
This is the most common method for continuous loop wire ropes.
- Interweaving: The prepared strands from one end are woven deeply into the body of the other end, replacing its original strands.
- Laying In: Each strand completely replaces a strand from the other end. This process continues for several lays.
- Tucking and Burying: The ends of the individual strands are then tucked and buried within the rope’s core. This makes the splice almost invisible and prevents fraying.
This splice keeps the rope’s diameter uniform, which is important for things like pulleys.

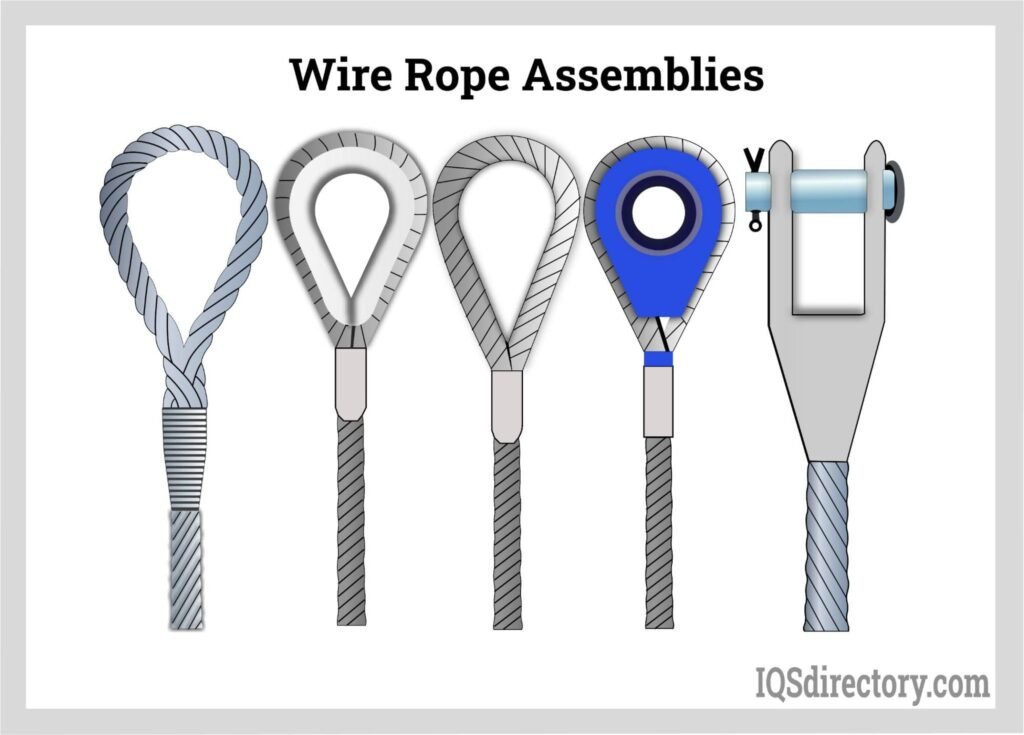

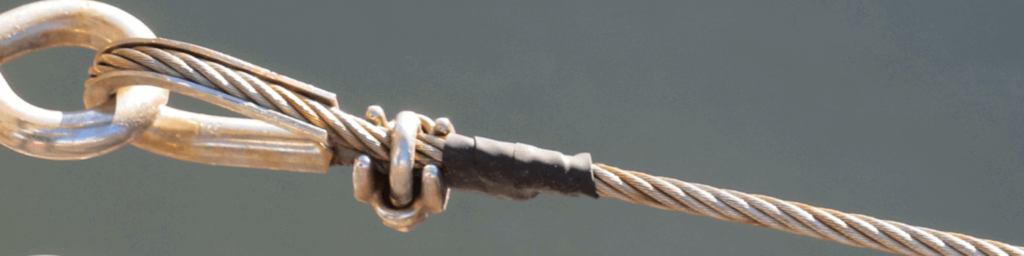

Flemish Eye Splice (for terminations, not continuous loops, but relevant for understanding splicing skill)
While not for continuous loops, the Flemish Eye shows the skill in rope work.
| Step | Description |
|---|---|
| Unlay | Rope ends are untwisted into strands. |
| Form Eye | Strands are looped back to form an eye. |
| Marry Strands | Strands are interlocked to form a secure eye. |
| Sleeve/Swage | A metal sleeve is pressed over the splice for extra security. |
Hand Splicing vs. Mechanical Splicing
- Hand Splicing: This is done manually by skilled workers. It is often used for specialized or smaller ropes. It takes a lot of time and expertise. Hand splicing allows for fine adjustments and a very uniform finish.

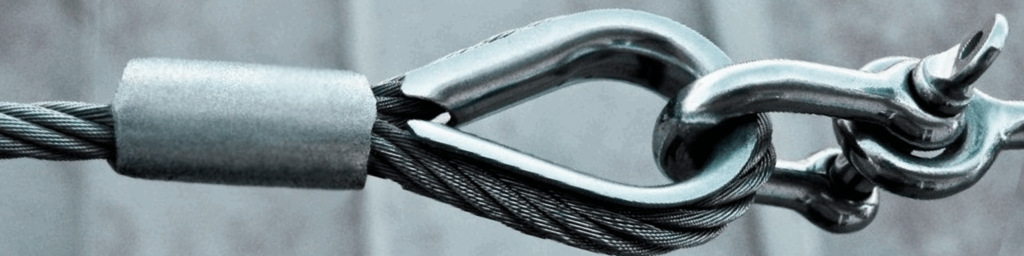

- Mechanical Splicing (Sleeving/Swaging): For forming eyes or loops with thimbles, mechanical methods use hydraulic presses to secure metal sleeves. While not used for continuous loop body splices, it’s a key part of rope assembly.
How is the strength and integrity of the splice tested?
After all that careful work, testing is vital. We must ensure the splice is strong and safe. Our commitment to quality means rigorous testing.
The strength and integrity of a continuous loop wire rope splice are tested through visual inspection, precise measurement, and often by subjecting samples to proof load tests and breaking load tests.
We do not just guess that the splice is strong. We prove it. This gives our customers confidence in our products.
Dive Deeper: Ensuring Splice Reliability
Safety is always our top priority. We use strict testing methods to confirm every continuous loop wire rope meets high standards.
Visual Inspection
The first step is a thorough visual check. We look for any signs of:
- Unevenness: The splice should be smooth and the same diameter as the rest of the rope.
- Protruding Wires: No individual wires should stick out, as this can cause damage or injury.
- Proper Lay: The lay of the rope should be consistent through the splice area.
Measurement
We measure the diameter of the rope at the splice point. It should match the original rope diameter. Any variation can mean a weak splice.
Proof Load Testing
A proof load test applies a specific load to the rope, usually a percentage of its working load limit. The rope must hold this load without showing any signs of damage or permanent deformation. This test ensures the rope can handle its expected working conditions.
Breaking Load Testing
For this test, a sample of the rope with a splice is pulled until it breaks. The force required to break the rope is measured. The goal is for the rope to break outside the spliced area. If it breaks at the splice, it means the splice is the weakest link, which is not ideal. Our high breaking load specification ensures a very strong product.
Certifications
Beyond internal testing, third-party certifications like BV, CE, RMRS, DNV, and ABS confirm our quality. These certificates show that our products meet global safety and performance standards. This is very important for our international customers. They know they get a reliable product.
Conclusion
Making continuous loop wire ropes is a mix of art and science. It demands precise material selection, skilled preparation, expert splicing, and strict testing. We pride ourselves on delivering high-quality, high-strength ropes that meet global standards.
