Many lifting accidents happen because the wrong wire rope is selected. A normal rope may create rotation, safety risks, and extra maintenance costs during heavy lifting.
Non rotating wire rope 35×7 is a specially designed crane wire rope that reduces rotation under load. It provides high breaking load, stable lifting performance, and reliable operation for heavy cranes and lifting equipment.
I have seen many lifting projects where rope stability directly affects operation efficiency. Choosing the correct rope structure is not only about strength. It is also about safety and long service life.
What Is Non Rotating Wire Rope 35×7?
Many people understand wire rope strength, but they may not know why some cranes require non rotating designs.

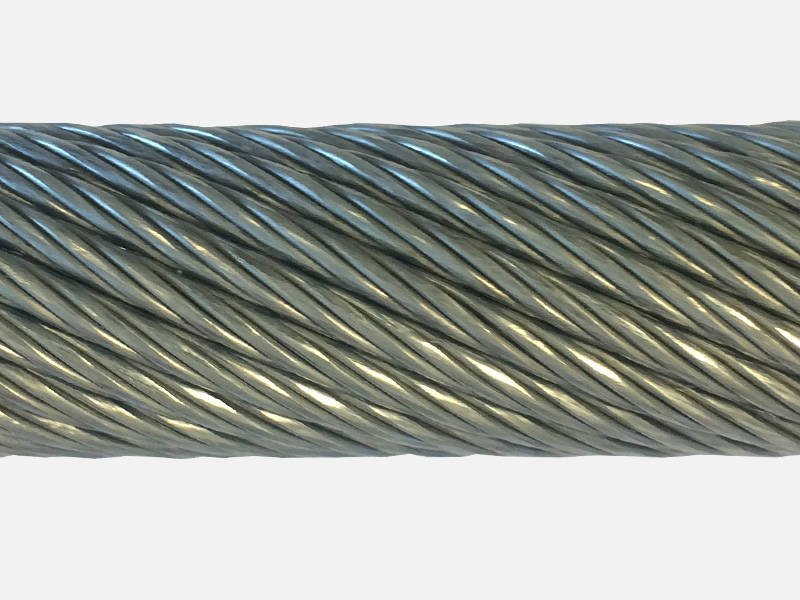

Non rotating wire rope 35×7 is a multi-layer steel wire rope with 35 strands and 7 wires in each strand. Its special construction balances internal forces and reduces torque when lifting heavy loads.
Understanding the Structure of 35×7 Wire Rope
When I introduce 35×7 wire rope to customers, I always explain that the structure is the key difference.
A standard wire rope mainly focuses on strength and flexibility. However, a non rotating wire rope has a different design purpose. It needs to control the twisting force created during lifting.
The 35×7 structure usually includes multiple layers with different lay directions. These layers work together to reduce rotation.
| Item | Description |
|---|---|
| Product Type | Non rotating wire rope |
| Construction | 35×7 |
| Material | High carbon steel wire |
| Application | Heavy lifting cranes |
| Main Feature | Low rotation performance |
| Strength Grade | 1770MPa / 1960MPa / 2160MPa |
| Standard | EN12385-4 |
| Available Surface | Bright and galvanized |
The number “35” represents the number of strands, while “7” represents the number of wires in each strand.
This special structure allows the rope to handle high loads while maintaining better control.
Why Does Rotation Become a Problem During Lifting?
A wire rope naturally creates torque when it carries a heavy load.
When the load increases, the rope stores more twisting energy. If the rope cannot control this force, the suspended load may rotate.
This problem becomes more serious in:
- High lifting height
- Heavy crane operation
- Offshore lifting
- Windy environments
- Large construction projects
For example, when a crane lifts a heavy steel structure, uncontrolled rotation can make positioning more difficult. It can also increase risks for workers around the lifting area.
A non rotating wire rope helps reduce these problems because the rope structure balances the internal torque.
Where Is 35×7 Non Rotating Wire Rope Used?
I usually recommend 35×7 wire rope for applications where lifting stability is important.
| Industry | Equipment |
|---|---|
| Construction | Crawler cranes, tower cranes |
| Port | Ship cranes, container cranes |
| Mining | Heavy lifting equipment |
| Offshore | Offshore cranes |
| Energy | Large engineering projects |
These industries normally require:
- High breaking load
- Good fatigue resistance
- Stable operation
- Reliable safety performance
The 35×7 design is suitable because it combines strength and rotation resistance.
Why Do Heavy Cranes Choose 35×7 Non Rotating Wire Rope?
Heavy lifting requires more than a strong wire rope. The rope must also provide stable performance during repeated operations.
35×7 non rotating wire rope is widely used for heavy cranes because it offers high tensile strength, low rotation, and excellent load control during lifting operations.
High Breaking Load Supports Heavy Lifting
Heavy cranes often work with large loads. The wire rope must provide enough safety margin during operation.
The strength grade directly affects the rope performance.
| Strength Grade | Typical Application |
|---|---|
| 1770MPa | General crane lifting |
| 1960MPa | Heavy duty lifting |
| 2160MPa | High performance applications |
I always suggest customers select the strength grade based on the crane model, working load, and safety requirements.
A higher strength grade does not always mean better performance. The rope structure, diameter, and application conditions must also match.
Stable Performance During Long Lifting Operations
Long lifting distance creates more challenges for wire ropes.
When the lifting height increases, the rope experiences:
- Higher tension
- More movement
- More twisting force
- More fatigue cycles
A normal rope may rotate more during these conditions.
A 35×7 non rotating wire rope provides better control. It helps operators handle the load more easily.
This is especially useful for:
- Deep lifting operations
- Large industrial projects
- Precision positioning work
Better Safety for Operators and Equipment
Safety is always the first consideration in crane operations.
A rotating load can create unexpected movement. This movement can damage equipment or create danger for workers.
A suitable non rotating rope helps reduce:
- Load spinning
- Hook rotation
- Uneven force distribution
- Unstable lifting movement
However, I always remind customers that even the best wire rope requires correct installation and regular inspection.
How Is 35×7 Different From Other Non Rotating Wire Ropes?
Many customers ask me about the difference between 35×7 and other non rotating wire ropes.
35×7 wire rope has a balanced structure that provides strong rotation resistance and high load capacity, making it suitable for large cranes and demanding lifting environments.

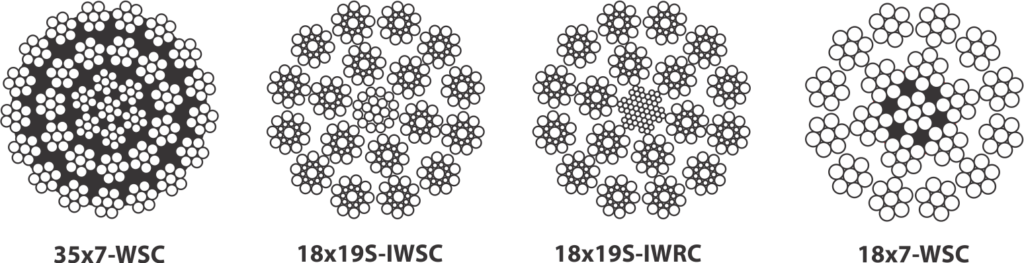

35×7 vs 19×7 Wire Rope
Both 35×7 and 19×7 are common non rotating wire rope designs.
However, their structures create different performance characteristics.
| Comparison | 35×7 | 19×7 |
|---|---|---|
| Number of strands | 35 | 19 |
| Rotation resistance | Higher | Good |
| Flexibility | Higher | Good |
| Heavy lifting suitability | Excellent | Good |
| Typical use | Large cranes | General lifting cranes |
The 35×7 structure normally provides stronger rotation control because it contains more strands.
For very large cranes and critical lifting operations, many users prefer 35×7.
When Should I Choose 35×7 Wire Rope?
I normally suggest 35×7 when customers need:
- Large lifting capacity
- High safety requirements
- Better rotation control
- Long service life
- Stable crane operation
However, the final selection depends on the crane system.
Important factors include:
| Factor | Why It Matters |
|---|---|
| Crane type | Different cranes have different requirements |
| Rope diameter | Affects strength and compatibility |
| Working load | Determines safety level |
| Sheave size | Affects bending fatigue |
| Environment | Affects corrosion resistance |
The correct rope choice should always match the complete lifting system.
What Are the Advantages of Galvanized and Plastic Impregnated 35×7 Wire Rope?
Different working environments require different rope protection methods.
Galvanized and plastic impregnated 35×7 wire ropes provide additional protection against corrosion and wear, especially in outdoor, marine, and heavy duty applications.
Galvanized 35×7 Wire Rope
Galvanized wire rope has a zinc coating on the steel wire surface.
This coating helps protect the rope from corrosion.
It is commonly used in:
- Marine environments
- Outdoor cranes
- Port equipment
- Construction sites
| Feature | Benefit |
|---|---|
| Zinc coating | Better corrosion resistance |
| Outdoor performance | Longer service life |
| Maintenance | Reduced replacement frequency |
For customers working near water or humid areas, galvanized rope is often a better choice.

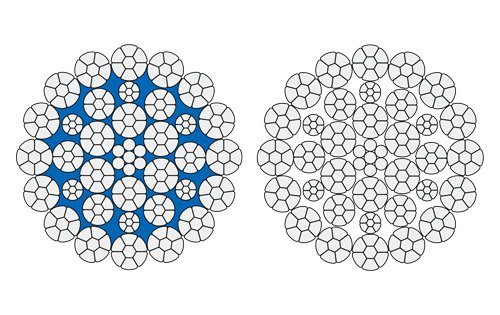

Plastic Impregnated 35×7 Wire Rope
Plastic impregnated wire rope has a protective layer between the outer strands.
This design provides additional benefits.
The plastic layer helps:
- Reduce moisture entering the rope
- Reduce internal friction
- Improve fatigue resistance
- Protect internal wires
For demanding crane applications, plastic impregnated ropes can provide better long-term performance.
How Do I Ensure the Quality of 35×7 Non Rotating Wire Rope?
Quality control is one of the most important parts of wire rope manufacturing.
High quality 35×7 wire rope requires strict control of raw materials, production processes, testing, and certification to ensure safe lifting performance.
Manufacturing Process Matters
I believe a reliable wire rope starts from the production process.
The main steps include:
- High carbon steel wire selection
- Wire drawing process
- Strand production
- Rope closing
- Lubrication treatment
- Final inspection
Each step affects the final rope performance.
Certifications and Testing
For international projects, customers often require certificates.
| Certificate | Purpose |
|---|---|
| EN12385-4 | European wire rope standard |
| BV | Third-party inspection |
| CE | European market requirement |
| DNV | Marine and offshore applications |
| ABS | Marine industry requirement |
I can provide related certificates according to project requirements.
Testing usually includes:
- Breaking load test
- Diameter measurement
- Visual inspection
- Material checking
Conclusion
Non rotating wire rope 35×7 provides strong lifting performance, excellent rotation control, and reliable safety for heavy crane applications. Choosing the right structure helps improve efficiency and reduce risks.
