A crane failure can create serious safety problems. Many companies choose wire ropes only by price and ignore working conditions. This choice can increase maintenance costs and project risks.
The most suitable wire rope for a crane depends on the crane type, lifting capacity, working environment, and operating frequency. Common crane wire ropes include 6×36 IWRC, 19×7, 35×7 rotation-resistant ropes, and compacted wire ropes. The correct choice improves safety, service life, and lifting efficiency.
I have worked with many crane wire rope projects, and I found that most problems do not come from the wire rope itself. Many problems happen because the wrong rope construction is selected for the application. A professional selection process always starts with understanding the crane.
What factors should I consider when choosing a crane wire rope?
Choosing a crane wire rope is not only about selecting a diameter. The working condition decides which rope construction can perform well.
The main factors for selecting crane wire rope include crane type, working load, rope construction, bending cycles, drum system, operating environment, and required certifications. These factors directly affect rope safety and service life.
Why does the crane type affect wire rope selection?
Different cranes create different forces on the wire rope.
A tower crane usually requires excellent rotation control because the load is lifted at a great height. A mobile crane needs good flexibility because the rope passes through many sheaves.
I usually check the following information before recommending a rope:
| Information Required | Why It Is Important |
|---|---|
| Crane model | Different cranes have different rope requirements |
| Maximum lifting load | Determines required breaking force |
| Rope diameter | Must match drum and sheave size |
| Working hours | Shows fatigue requirements |
| Lifting frequency | Affects rope service life |
| Environment | Determines corrosion protection |
A rope that works well on one crane may not be suitable for another crane.
Why is the working environment important?
The environment changes how fast a wire rope wears.
For example:
- Marine cranes face saltwater corrosion.
- Mining cranes face dust and heavy loads.
- Port cranes require long service life under repeated lifting.
- Indoor cranes may have lower corrosion requirements.
I often recommend galvanized wire ropes for outdoor and marine environments because the zinc coating provides additional corrosion protection.
Why should buyers consider safety standards?
Crane wire rope is a safety-critical component.
A lower-cost rope may look attractive at the beginning. However, poor quality can lead to shorter service life and higher replacement costs.
Professional projects usually require:
- Stable breaking load
- Reliable manufacturing process
- Test certificates
- Compliance with international standards

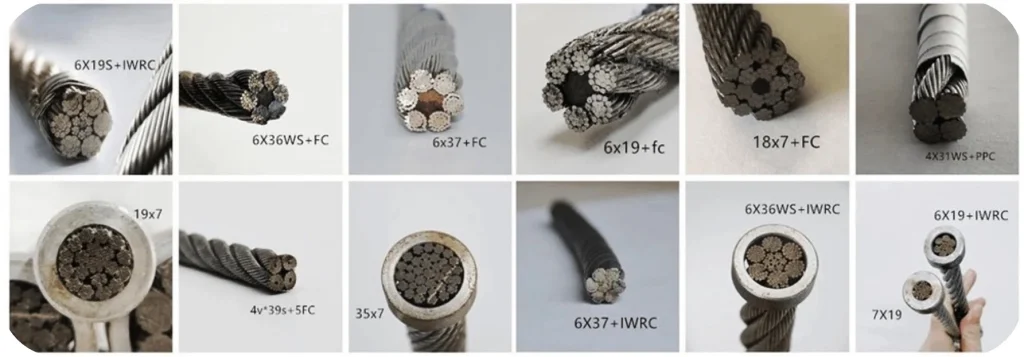

What are the most common wire rope constructions used on cranes?
Many buyers ask me which wire rope construction is the most popular for cranes. The answer depends on the crane application.
The most common crane wire rope constructions include 6×19 IWRC, 6×36 IWRC, 19×7, 35×7 rotation-resistant wire ropes, and compacted ropes. Standard ropes provide flexibility, while rotation-resistant ropes control load rotation during lifting.
What is 6×36 IWRC wire rope?
6×36 IWRC is one of the most widely used crane wire ropes.
The rope has six outer strands around an independent wire rope core.
It provides:
- Good flexibility
- Good bending fatigue resistance
- Good abrasion resistance
- Stable performance
However, 6×36 IWRC is not a rotation-resistant wire rope.
It is suitable for many general lifting applications where load rotation is not a major concern.
| Feature | 6×36 IWRC |
|---|---|
| Rotation resistant | No |
| Flexibility | Excellent |
| Fatigue resistance | Good |
| Common applications | Mobile cranes, overhead cranes, winches |
What is 19×7 rotation-resistant wire rope?
19×7 wire rope is designed to reduce rotation.
The rope structure uses multiple layers of strands with opposite directions. This design helps balance torque.
It is commonly used for:
- Tower cranes
- High lifting operations
- Single-part lifting systems
- Applications requiring better load control
| Feature | 19×7 |
|---|---|
| Rotation resistant | Yes |
| Load control | Excellent |
| Flexibility | Good |
| Typical use | Tower cranes |

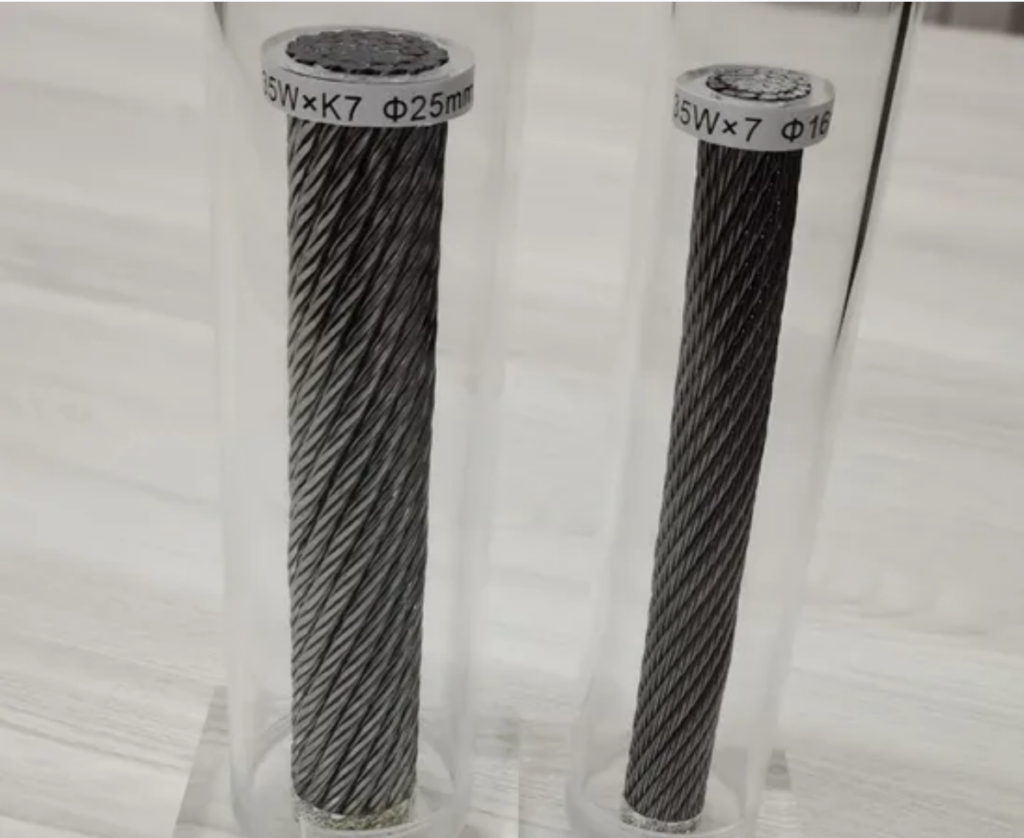

What is 35×7 rotation-resistant wire rope?
35×7 is another common rotation-resistant crane wire rope.
It provides better torque balance compared with standard six-strand ropes.
It is often selected for:
- Tower cranes
- Heavy lifting equipment
- Long lifting height applications
- Projects requiring stable load positioning
| Feature | 35×7 |
|---|---|
| Rotation resistant | Yes |
| Breaking load | High |
| Stability | Excellent |
| Typical use | Heavy lifting cranes |
What are compacted wire ropes?
Compacted wire ropes are produced through a special compacting process.
The outer strands become smoother and denser.
Benefits include:
| Advantage | Effect |
|---|---|
| Larger metallic area | Higher breaking load |
| Smooth surface | Reduced wear |
| Better drum contact | Longer service life |
| Compact structure | Improved strength |
Many heavy-duty lifting applications choose compacted ropes because they need higher performance.
When should I use a rotation-resistant wire rope on a crane?
Not every crane needs a rotation-resistant rope. Choosing the wrong type can increase cost without improving performance.
A rotation-resistant wire rope is mainly used when controlling load rotation is important, especially for high lifting heights, single-part lifting systems, and tower crane applications.
Why does wire rope rotation happen?
Steel wire ropes naturally create torque when they are loaded.
When the crane lifts a load, the rope may try to rotate.
This can create problems:
- Unstable loads
- Difficult positioning
- Twisted lifting accessories
- Reduced working efficiency
Rotation-resistant ropes reduce this movement.
When is rotation resistance necessary?
I usually recommend rotation-resistant ropes for:
| Application | Recommendation |
|---|---|
| Tower crane | Recommended |
| Long lifting height | Recommended |
| Single fall lifting | Recommended |
| Heavy suspended loads | Recommended |
| General workshop crane | Depends on design |
The crane manufacturer’s recommendation should always be followed.
Is low torque the same as rotation resistant?
No.
This is an important difference.
Some ropes have lower torque characteristics, but they are not classified as rotation-resistant ropes.
A true rotation-resistant rope uses a special multi-layer strand design to control torque.

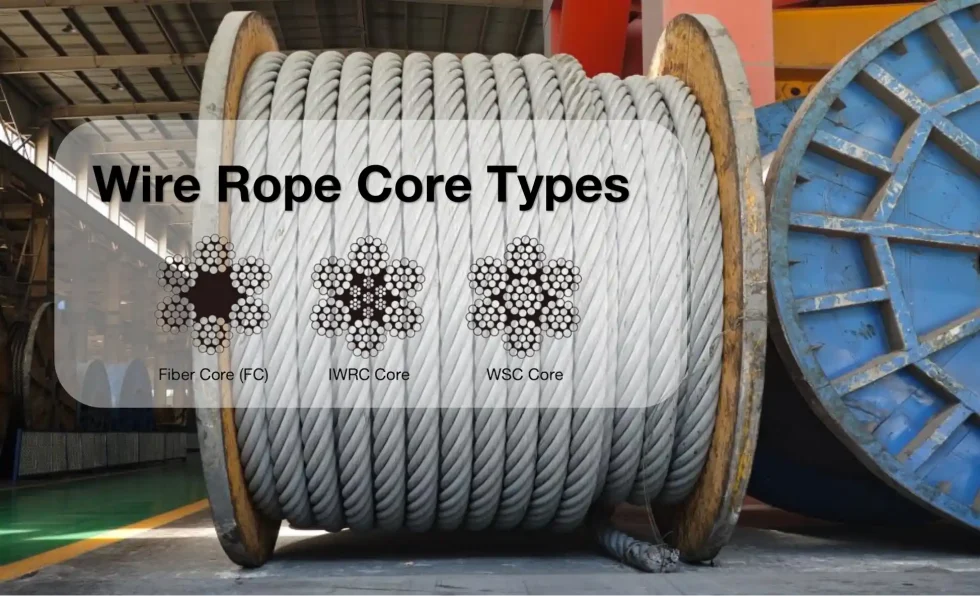

Should I choose fiber core or IWRC wire rope for cranes?
The core type affects rope strength, flexibility, and working performance.
IWRC wire rope usually provides higher strength and better crushing resistance, while fiber core wire rope provides better flexibility for lighter applications.
What is fiber core wire rope?
Fiber core ropes use natural or synthetic fiber as the core.
Advantages:
- More flexible
- Better lubrication storage
- Easier handling
They are suitable for lighter lifting applications.
What is IWRC wire rope?
IWRC means Independent Wire Rope Core.
The steel core supports the outer strands.
Advantages include:
| Advantage | Benefit |
|---|---|
| Higher strength | Higher lifting capacity |
| Better crushing resistance | Better drum performance |
| Higher stability | Suitable for heavy duty |
Many crane applications use IWRC ropes because cranes often work under high loads.
What wire rope grade is suitable for cranes?
Wire rope strength grade affects the breaking load.
Common crane wire rope grades include 1770 MPa, 1960 MPa, and 2160 MPa. The correct grade depends on crane design, safety requirements, and manufacturer recommendations.
Does higher tensile strength always mean better?
Not always.
A higher strength rope provides a higher breaking load, but the crane system must also support that rope.
The correct selection balances:
- Breaking load
- Fatigue resistance
- Sheave condition
- Drum design
A professional supplier should consider the complete lifting system.
Why do many customers choose 1960 MPa wire rope?
1960 MPa provides a good balance between strength and performance.
It is widely used in many lifting applications.
Should I choose galvanized or bright wire rope for a crane?
The surface treatment affects corrosion resistance.
Galvanized wire rope provides better corrosion protection, while bright wire rope is suitable for many indoor applications where corrosion risk is lower.
When should I use galvanized wire rope?
Galvanized ropes are commonly used in:
- Marine cranes
- Port equipment
- Offshore applications
- Outdoor cranes
The zinc coating helps protect steel wires from corrosion.
When is bright wire rope suitable?
Bright wire rope can be a good choice for:
- Indoor factories
- Warehouses
- Controlled environments
The final choice depends on working conditions.
What standards and certificates should crane wire ropes meet?
Crane projects often require documented quality control.
Professional crane wire ropes should meet recognized standards such as EN12385-4. Additional certificates such as BV, CE, DNV, ABS, or RMRS may be required depending on the application.
Why is EN12385-4 important?
EN12385-4 defines requirements for stranded steel wire ropes used for lifting applications.
It covers:
- Rope construction
- Mechanical properties
- Testing requirements
- Safety performance
Many international buyers request EN12385-4 compliance.
Why are third-party certificates valuable?
Third-party certificates provide additional confidence.
They help customers confirm:
- Breaking load
- Material quality
- Production control
For international projects, these documents can simplify approval procedures.

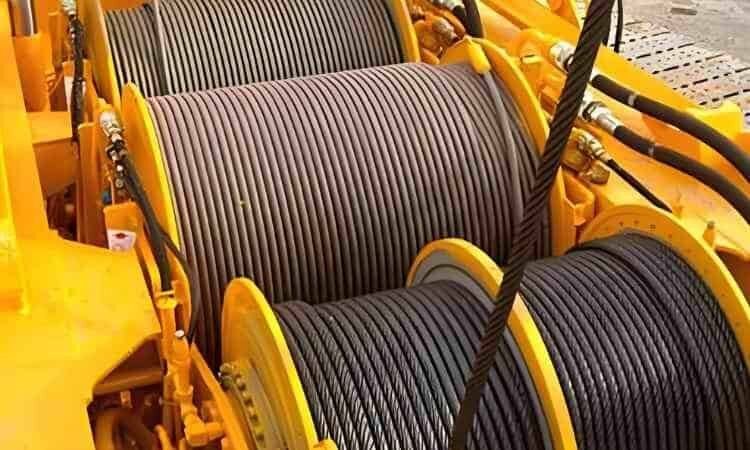

How can I extend the service life of crane wire rope?
A good wire rope still needs proper maintenance.

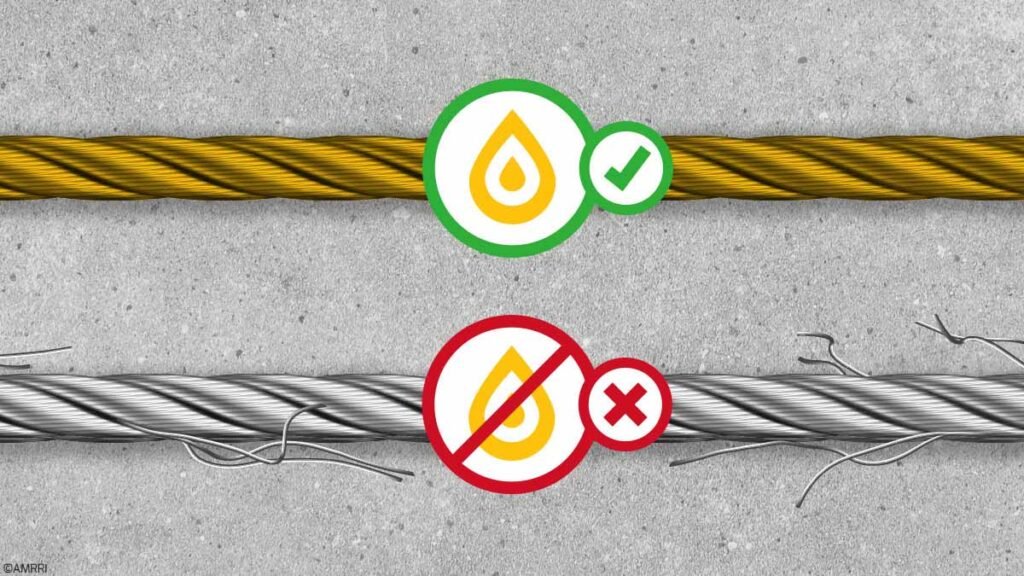

Regular inspection, correct installation, proper lubrication, and timely replacement can significantly improve wire rope service life and crane safety.
What should I check during inspection?
Regular inspection should include:
| Inspection Item | Purpose |
|---|---|
| Broken wires | Check fatigue damage |
| Corrosion | Check environmental damage |
| Diameter reduction | Check wear |
| Rope deformation | Identify unsafe conditions |
| Lubrication condition | Prevent excessive friction |
Why is installation important?
Incorrect installation can damage a new rope quickly.
Common mistakes include:
- Wrong winding direction
- Incorrect storage
- Poor lubrication
- Damaged sheaves
Professional installation helps protect the rope investment.
Why do buyers choose an experienced crane wire rope manufacturer?
A reliable supplier provides more than a product. The supplier provides technical support and quality assurance.
An experienced wire rope manufacturer helps customers select the correct construction, provide certifications, maintain stable quality, and support different lifting applications worldwide.
What products can a professional supplier provide?
A complete wire rope supplier can support different industries.
| Product | Application |
|---|---|
| Crane wire rope | Lifting equipment |
| Elevator wire rope | Vertical transportation |
| Mining wire rope | Heavy-duty mining |
| Marine wire rope | Offshore and ports |
| Galvanized wire rope | Corrosion environments |
| Stainless steel wire rope | Special environments |
| Synthetic rope | Lightweight lifting |
What customization options are available?
Many projects require customized solutions.
Available options may include:
- Customized length
- Customized logo
- Plastic impregnated wire rope
- Galvanized surface
- Special packaging
- Third-party inspection
A flexible manufacturer can help customers solve different project requirements.
Conclusion
Choosing crane wire rope requires the right balance between construction, strength, environment, and safety standards. The correct rope improves lifting performance and reduces operating risks.
