Why Does Wire Rope Usually Break at the Ends?

22 6 月, 2025

Does your wire rope break too often? Is it always at the ends? This problem causes frustration and delays.

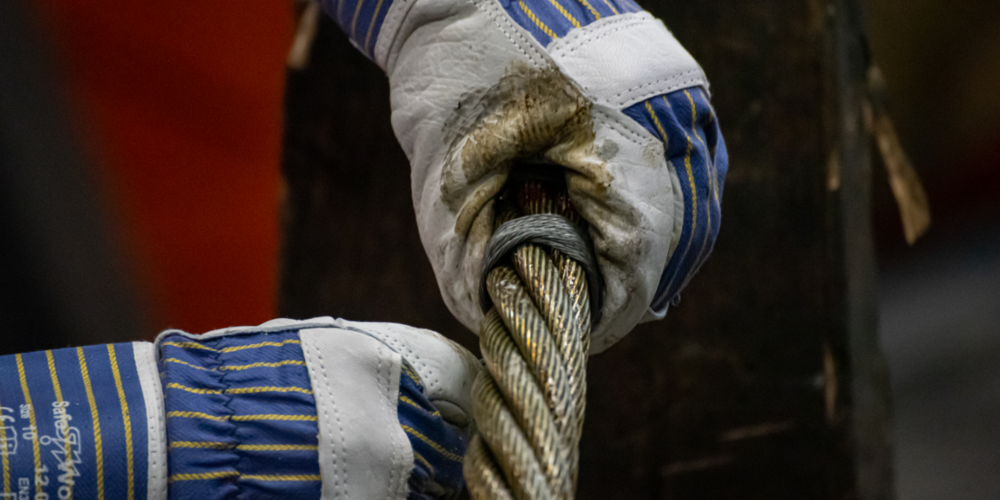

Wire ropes often break at the ends due to high stress concentration, abrasion, bending fatigue, and crushing at connection points or terminations. These points bear the most dynamic load and wear.

I remember one time a client, who used to import from Germany, faced this exact issue. He needed reliable wire rope for his large projects. This breaking at the ends was costing him time and money.

Why is Stress Concentration the Main Culprit for End Breaks?

Does stress concentration truly cause most end breaks? How does it affect the wire rope?

Stress concentration is the main culprit for end breaks because the greatest forces are focused at termination points and points of redirection, leading to premature fatigue and failure.

Dive Deeper: Stress Concentration’s Impact

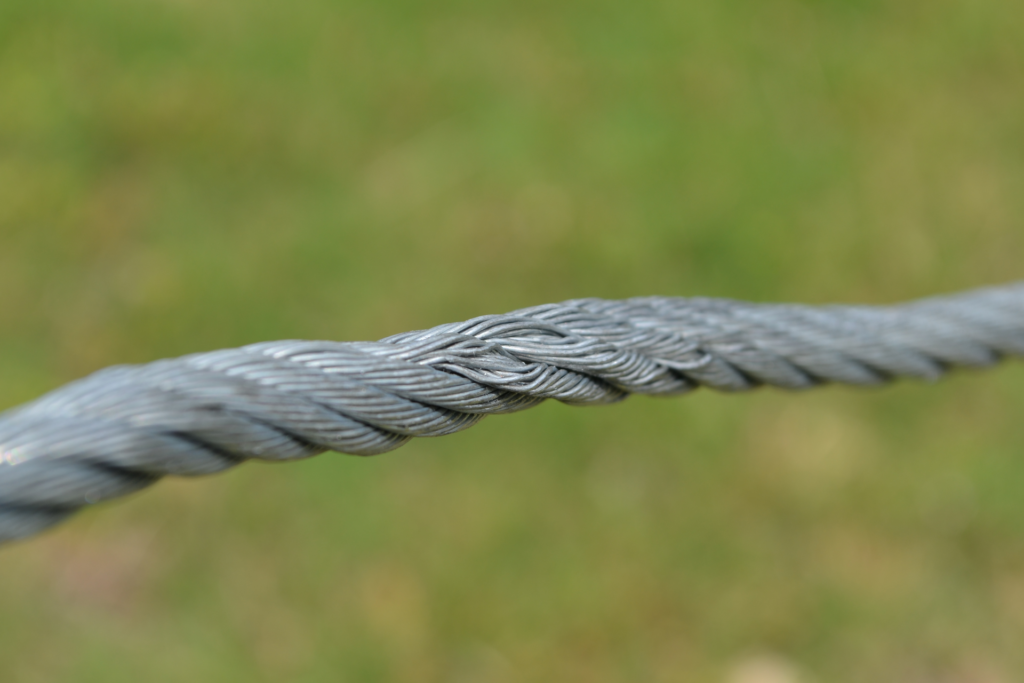

Stress means pressure on the rope. At the ends, all the pulling power gathers. This makes those spots weaker. Think of a chain. It breaks at the weakest link. For wire rope, the ends are often that weak link. When a rope pulls a heavy load, the force is high. This force goes to the end connections. Bending over a sheave also adds stress. Each bend puts strain on outer wires. This strain builds up over time. It can cause small cracks. These cracks get bigger with more use.

Factors Increasing Stress Concentration:

Factor	Description
Improper Sizing	Using a rope too thin for the load.
Poor Swaging	Incorrectly fitting the end connection.
Sharp Bends	Bending the rope around a too-small radius.
Uneven Loading	Weight not spread out on all strands.

This effect is not just about the load. It is also about how the rope is used. If the rope rubs against sharp edges, stress goes up. If it is pulled at an angle, some parts get more stress. We always advise using the correct size and type of fittings. This helps spread the load. It makes the rope last longer. We make high-quality wire rope. Our ropes meet EN12385-4 standards. This helps reduce stress breaks.

How Does Abrasion Contribute to Wire Rope End Failure?

Is abrasion a big factor in rope breaking at the ends? What causes this wear?

Abrasion contributes significantly to wire rope end failure when the rope rubs against hard surfaces, other ropes, or internal components, wearing down outer wires and weakening the structure, especially at high-friction points.

Dive Deeper: The Effects of Abrasion

Abrasion is like sandpaper rubbing on wood. It wears down the surface. For wire rope, this means the outer wires. When these wires are worn, they become thin. Thin wires break easily. Abrasion often happens at the ends. This is where the rope touches other parts. Think of a crane. The rope moves over sheaves. It goes into drums. These are contact points. If the sheave is rough, it rubs the rope. If the drum winding is not smooth, it grinds the rope. Dirt and grit also cause abrasion. They get stuck between wires. Then they act like tiny cutting tools.

Preventing Abrasion Damage:

Method	Explanation
Proper Lubrication	Reduces friction between wires and external surfaces.
Smooth Sheaves/Drums	Ensures surface contact is not rough.

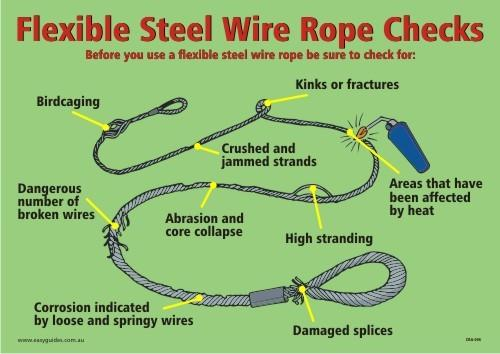

Regular Inspection	Checks for wear and allows early intervention.
Protective Sleeves	Adds a barrier where rope contacts other objects.

We use special lubrication during manufacturing. This helps protect our galvanized wire rope. It fills the gaps between wires. This stops dirt and grit from getting in. It also reduces wire-on-wire friction. Our ropes are built with high tensile strength. This makes them more resistant to wear. Plastic impregnated ropes also offer good protection. This adds a layer inside the rope. It helps prevent internal abrasion. This makes our products more durable.

What Role Does Bending Fatigue Play in End Breaks?

Does repeated bending cause the rope ends to break? How does this happen?

Bending fatigue plays a critical role in end breaks because repetitive bending and straightening of the wires, especially over small-diameter sheaves, causes wires to succumb to metal fatigue and fracture, typically near termination points.

Dive Deeper: Understanding Bending Fatigue

Imagine bending a paper clip back and forth. What happens? It breaks. Wire rope wires are similar. They are made of metal. When they bend, one side stretches. The other side squeezes. Doing this many times weakens the metal. This is called fatigue. At the ends, ropes often go over sheaves. Each time they pass, they bend. If the sheave is too small, the bend is sharp. This sharp bend puts more stress on the wires. Over time, the wires start to crack. These cracks grow until the wire snaps. This happens strand by strand. Soon, the whole rope breaks.

Factors Worsening Bending Fatigue:

Factor	Impact on Wire Rope
Small Sheave Diameter	Creates sharper bends, increasing stress.
Incorrect Rope Construction	Using a stiff rope for continuous bending.
High Line Speeds	Increases the frequency of bending cycles.
High Loads	Exacerbates stress during each bend.

Our crane wire ropes are designed for heavy use. They are made to withstand repeated bending. We offer different rope constructions. Some are more flexible. This helps reduce fatigue. For example, our specialized assemblies are built for specific uses. They consider the bending needs from the start. We recommend choosing the right rope for your application. This prevents premature fatigue. High-quality materials also help. Our ropes have high breaking loads. This means they can handle more stress. This makes them last longer in harsh conditions. We can provide DNV and ABS certificates for our ropes. These show our quality.

How Do Crushing and Distortion Lead to End Failure?

Can crushing and distortion make wire rope ends fail? What causes these issues?

Crushing and distortion lead to end failure by deforming the rope’s cross-section, causing internal wires to rub, break, and weaken the structure, often due to improper winding or external pressure at termination points.

Dive Deeper: The Impact of Crushing and Distortion

Crushing is like squeezing the rope flat. Distortion means the rope changes its shape. Both are bad for wire rope. When a rope is crushed, its round shape becomes oval or flat. This makes some wires carry too much load. Other wires carry too little. Inside, wires rub against each other. This causes internal abrasion and breaks. This often happens on a drum. If the rope is not spooled evenly, it can crush itself. Overlapping layers can press down hard. External forces can also crush the rope. For example, if something heavy rolls over it. At the ends, especially, where the rope enters a fitting, distortion can occur if the fitting is not precisely applied.

Causes of Crushing and Distortion:

Cause	Consequence
Improper Winding	Uneven layering on drums, creating pressure points.
Drum Abuse	Rough surfaces or damaged drums.
External Pressure	Heavy objects falling on or rolling over the rope.

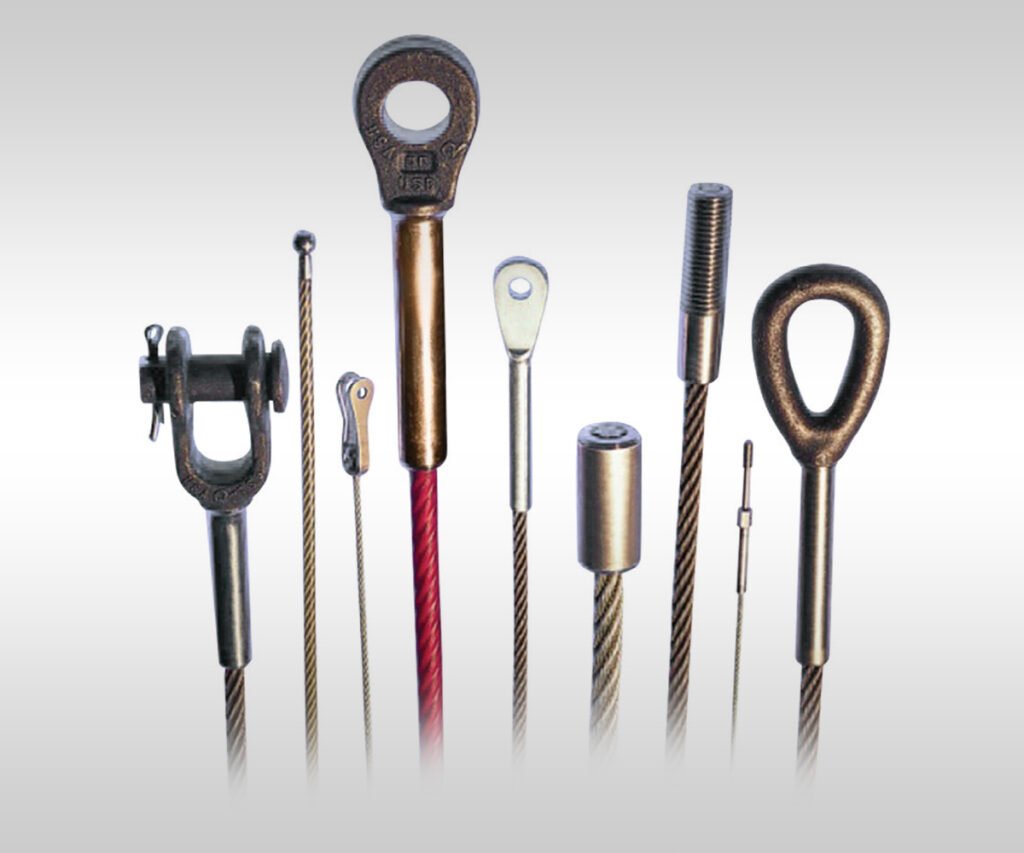

Incorrect Fittings	Fittings that deform the rope when installed.

We focus on the quality of our wire products. We ensure high breaking loads. This gives our ropes more resistance to external forces. Our factory has four production lines. This allows us to control quality tightly. We make sure our ropes, like mining wire rope, are robust. They need to handle tough conditions. When using specialized assemblies, proper fitting is key. It ensures the rope retains its structure. We also offer customized logos. This helps our clients ensure they are getting our quality. Our ropes can provide BV & CE, RMRS certificates. This shows our product consistency.
